Application: Wood, Aluminum, plastic, nameplate, advertising board, PVC,PCB etc. industry

Features: This spindle motor is made of imported bearings and high-quality stainless steel and is known for its three times longer service life than similar products. Due to its excellent performance, it is widely used in engraving equipment for various materials such as wood, stone and metal. Technical highlights include collets that meet ER11, and ER20 standards, strong bearing design, and low noise and heat dissipation.

PRODUCTS

Affordable air-cooled spindles for beginners & professional

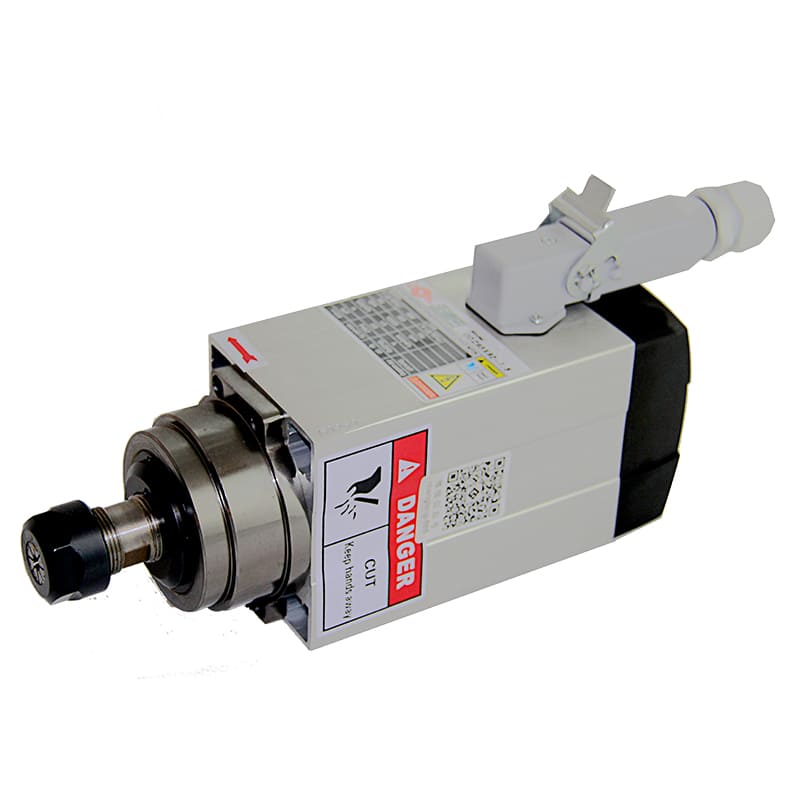

GDZ93x82-1.5 1.5KW ER20 square air cooling spindle

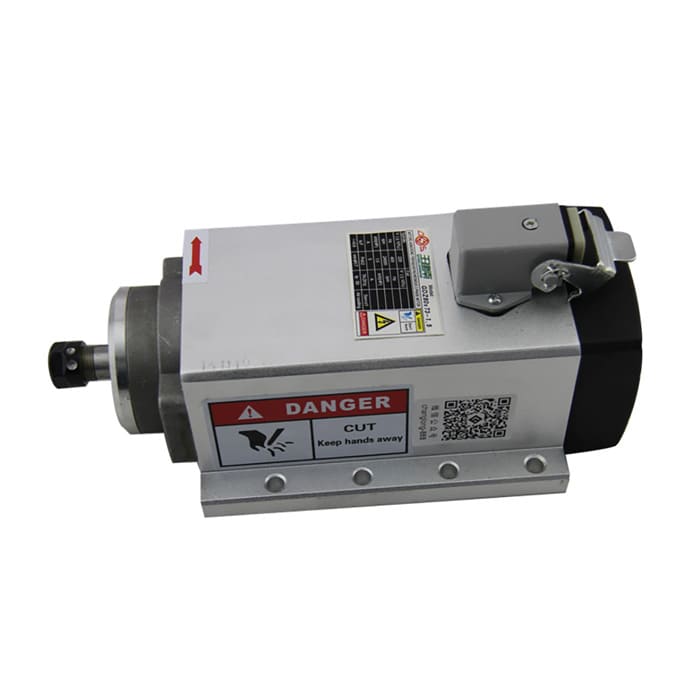

GDZ80x73-1.5 1.5kw ER11 square air cooling spindle

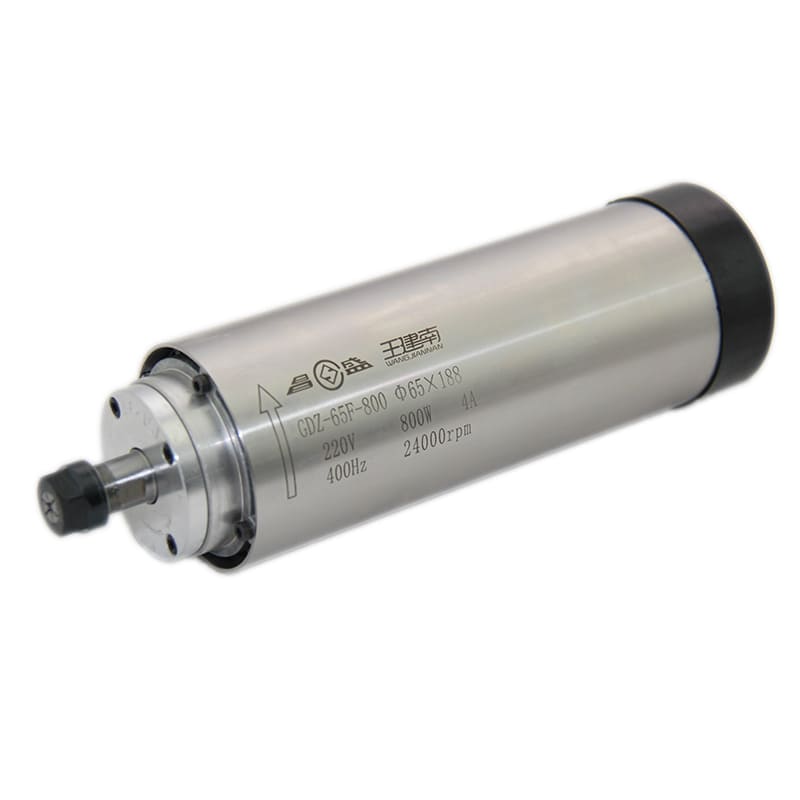

GDZ65F-800 800w ER11 round air-cooling spindle

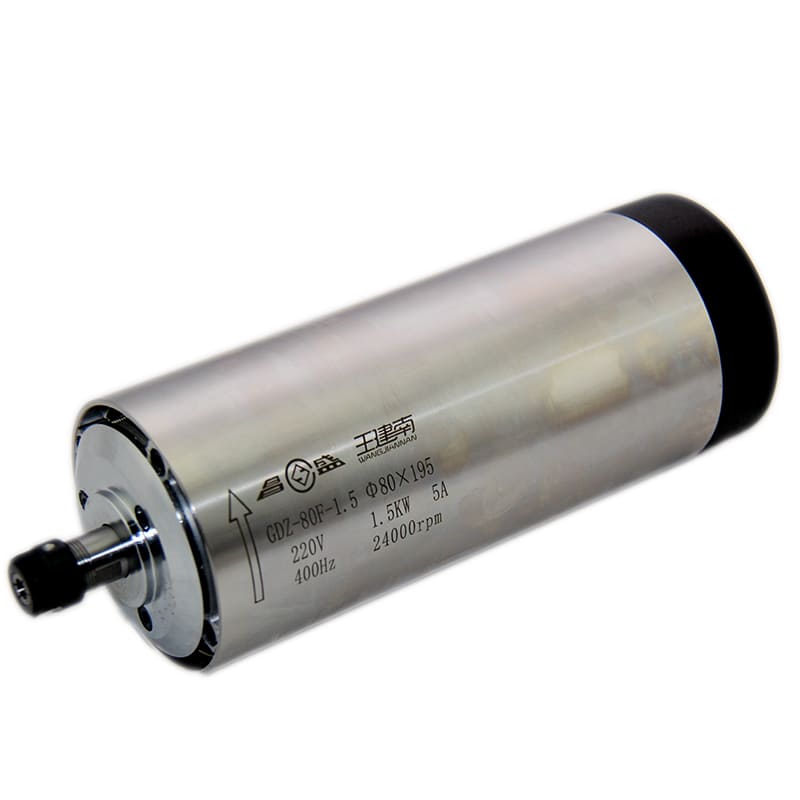

GDZ80F-1.5 1.5kw ER11 round air-cooling spindle

Main parameter:

Speed 18000 rpm, 24000 rpm
Voltage 220 V, 380 V
Current 4 A, 5 A, 6.8 A / 3.8 A
Frequency 400 Hz, 300 Hz
Collet ER11, ER20
Power 0.8 kW, 1.5 kW
Because the size of air-cooled spindles varies from manufacturer to manufacturer, we will not list all of them here. If you have any questions about the size of the air-cooled spindle you need to upgrade or purchase, please contact us. We have professional technicians to answer your questions.
Notice: The air-cooled spindle should not be operated for a long time. It is recommended to shut down the air-cooled spindle after running for a maximum of four hours at a time and let the spindle rest for two hours.

If you need a spindle with parameters not shown in the sheet, please contact us and we will provide you with professional services.

Description
  •  We recommend this spindle to anyone who wants to get serious about a CNC router machine and for small-scale commercial applications. On the other hand, powerful yet simple air cooling uses air from a fan to cool the spindle during operation. Two practical solutions for air cooling machines are shaft drive and electric fan drive. With shaft drive, a cooling turbine is attached to the spindle shaft.
  • The 1.5kW air-cooled spindle is a suitable upgrade for a standard router. The air-cooled CNC spindle uses imported bearings, which are of good quality and have a long service life. Each air-cooled CNC spindle undergoes a polishing process to improve the spindle concentricity, thereby extending the motor life.
