Application: Air-cooled spindle motors are an efficient and reliable industrial tool that is widely used in various precision processing equipment. They are usually used in conjunction with equipment such as frequency converters, engraving machines and CNC machine tools to achieve fine processing of materials such as wood, soft metals, plastics and foams. These air-cooled spindle motors are not only capable of high-speed profiling, drilling and engraving but also perform complex slot milling operations. By precisely controlling the speed and torque, air-cooled spindle motors ensure the stability of the processing process and the accuracy of the processed parts. Whether in the woodworking industry, metal processing or plastic product manufacturing, air-cooled spindle motors have become key components for improving production efficiency and processing quality with their excellent performance and reliability.

PRODUCTS

Affordable air-cooled spindles for beginners & professional

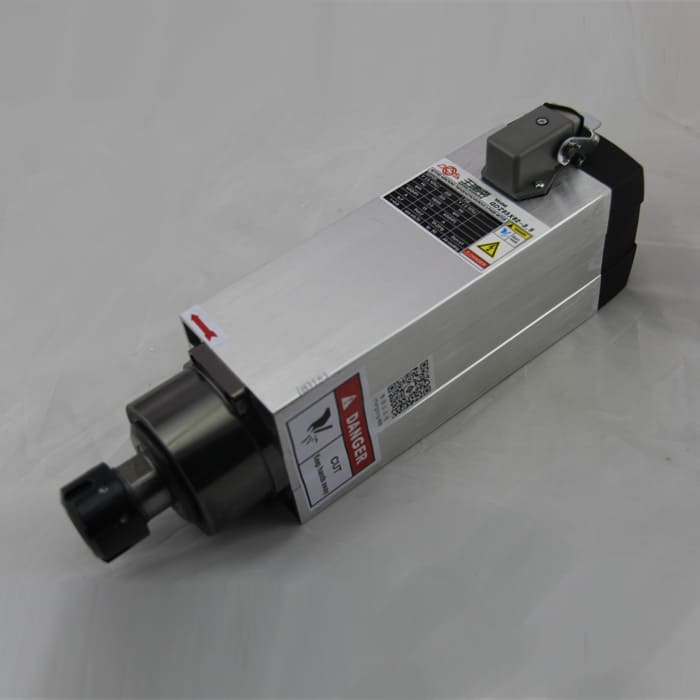

GDZ93x82-3.5 3.5kw ER25 air-cooling spindle

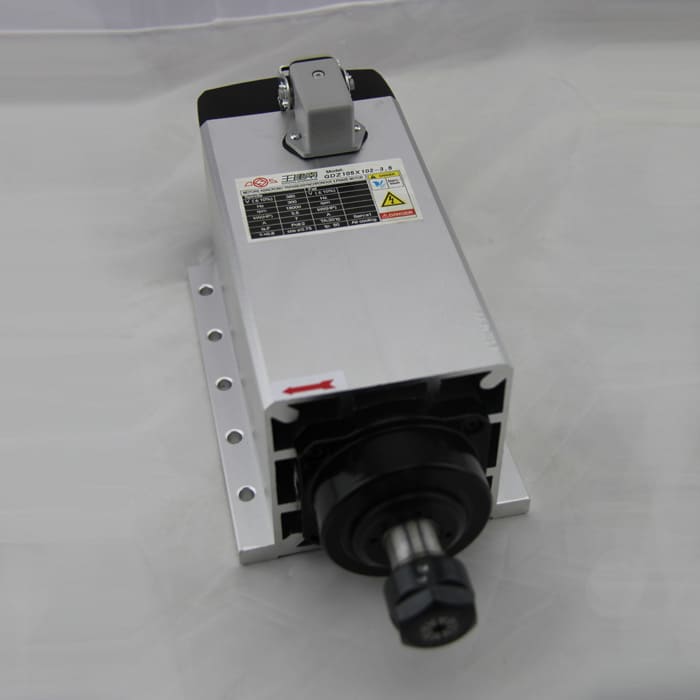

GDZ105*102-3.5 3.5kw ER20 air cooled spindles

Main parameter:

Speed (rpm) 18,000
Voltage (V) 220, 380
Current (A) 7.5, 15, 8.8
Frequency (Hz) 300
Collet ER20, ER25
Because the size of air-cooled spindles varies from manufacturer to manufacturer, we will not list all of them here. If you have any questions about the size of the air-cooled spindle you need to upgrade or purchase, please contact us. We have professional technicians to answer your questions.
Notice: The air-cooled spindle should not be operated for a long time. It is recommended to shut down the air-cooled spindle after running for a maximum of four hours at a time and let the spindle rest for two hours.

If you need a spindle with parameters not shown in the sheet, please contact us and we will provide you with professional services.

How do you solve or prevent problems in an air-cooled spindle?

  • Regular inspection and maintenance of the cooling system is essential to ensure optimal performance and life of the air-cooled spindle in your CNC machine.
    Balance the spindle and tool assembly to prevent vibration.
    Inspect and replace bearings, collets, and tool holders as needed.
    Ensure a stable power supply and proper wiring to ensure consistent spindle performance
