- GDZ-24-1B
- ER20 CNC spindle motor
- 24000rpm CNC spindle
- 2.2kw spindle motor
- water-cooled spindle motors
- Φ100mm spindle motor
- CNC graving, milling spindle motor
- Four-bearing structure
- Our CNC spindle motors are supplied directly from the factory, not purchased from the lowest-priced suppliers with unknown sources, thus ensuring known quality and reliability. All CNC Router Spindles from RicoCNC are original, with No fake.

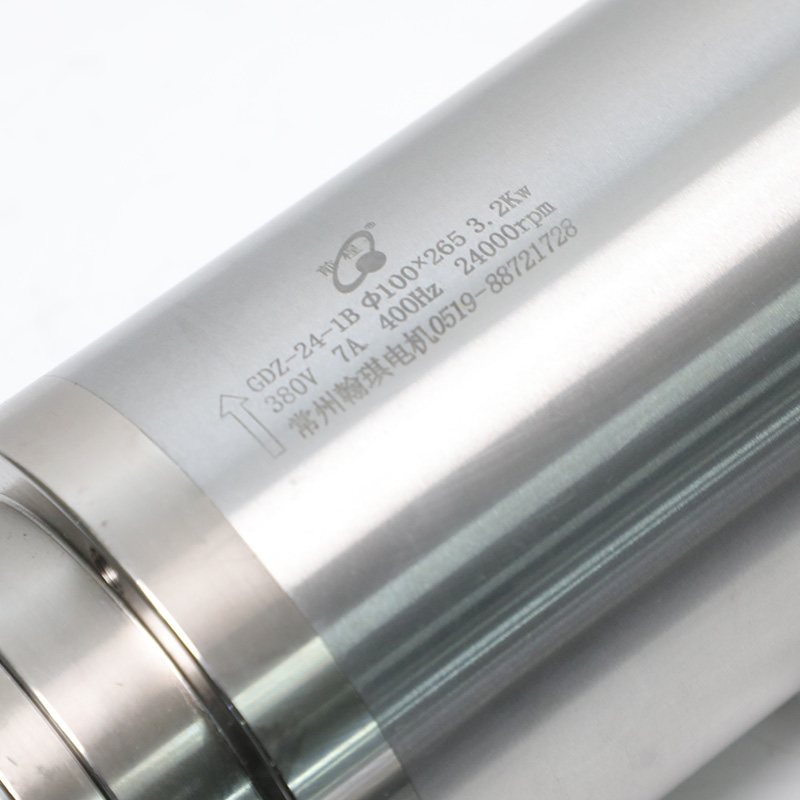

Technical Characteristics
| Type | GDZ-24-1B |
|---|---|
| Power | 3.2Kw |
| Voltage | 220V/380V |
| Current | 12A/7A |
| Frequency | 400Hz |
| Speed | 24000rpm |
| Weight | 11.5KG |
| Bearing | 2x7005C, 2x7003C |

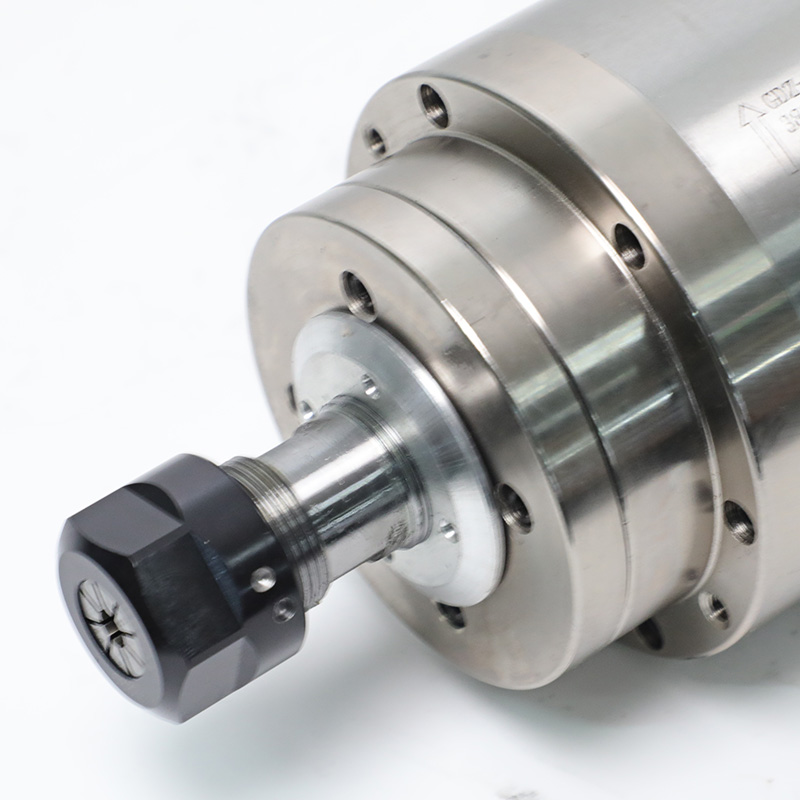

| Collet | ER20 |

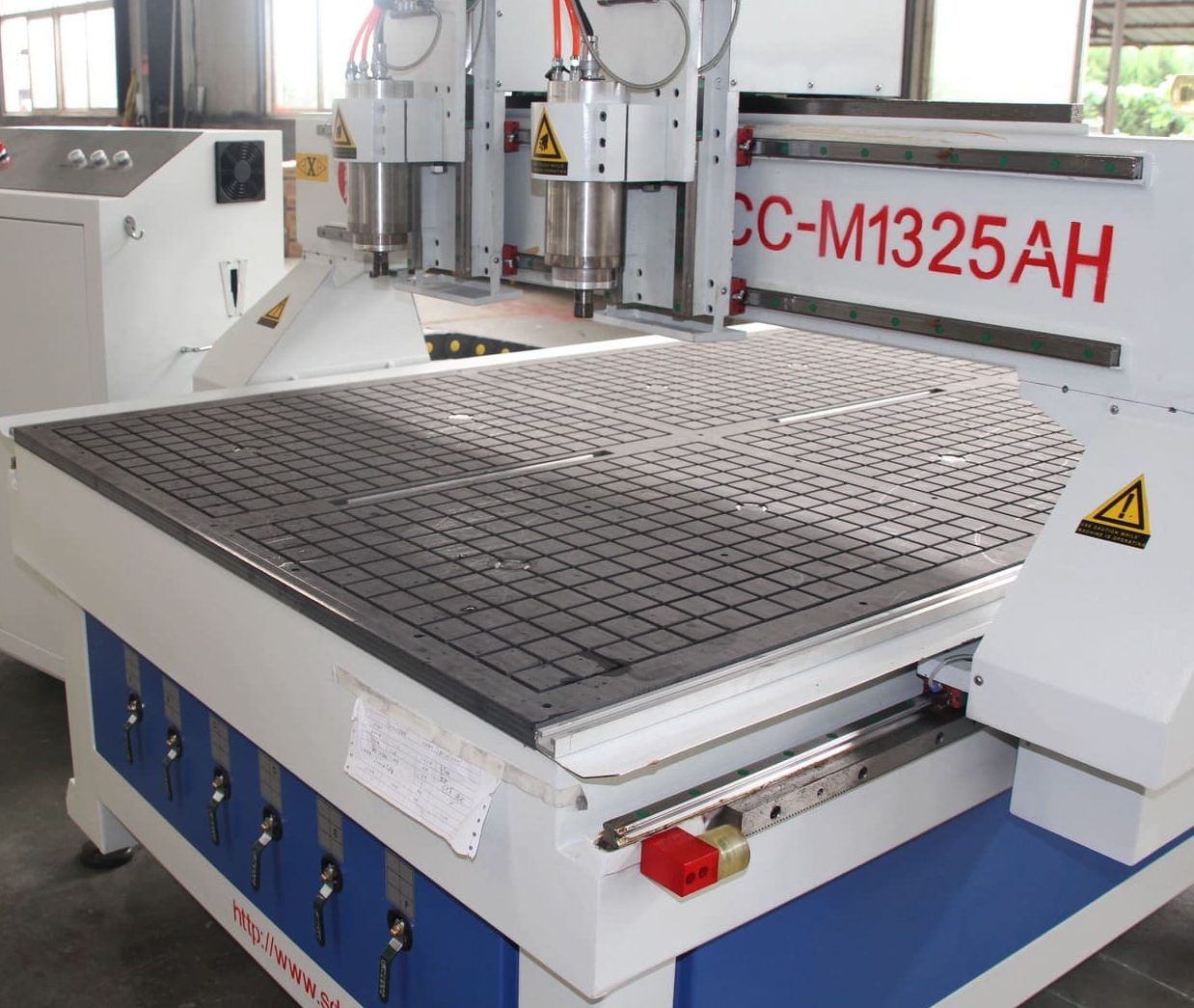

Application
- GDZ-24-1B is suitable for mold manufacturing, hardware processing, and wood processing and has great potential in the woodworking and advertising industries. It efficiently makes furniture, door panels, cabinets, brand names, billboards, etc. Processing extremely hard materials such as iron, steel, stone, etc is not recommended.
