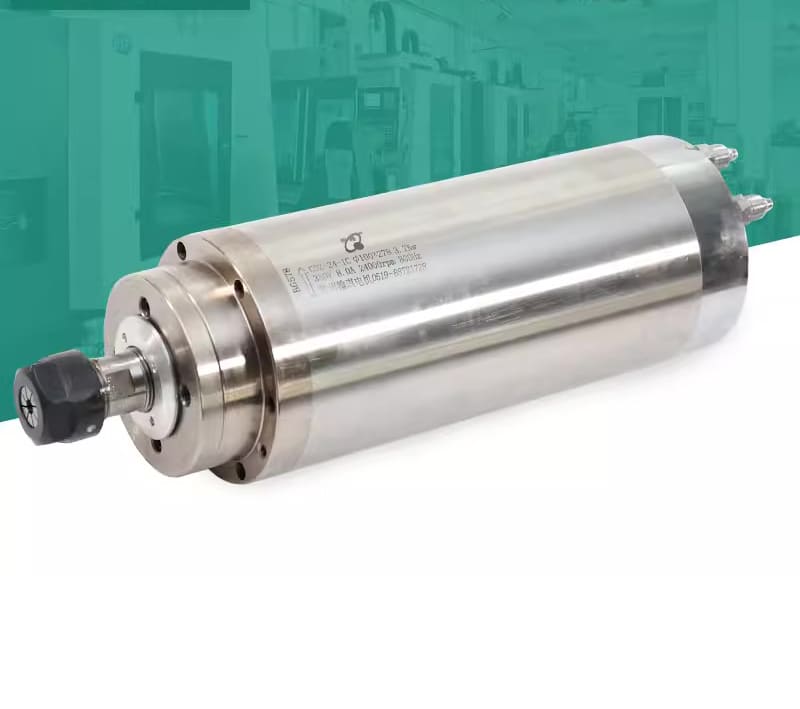

- GDZ-24-1C
- ER20 CNC spindle motor
- 24000rpm CNC spindle
- 3.2kw spindle motor
- water-cooled spindle motors
- Φ100mm spindle motor
- CNC graving, milling spindle motor
- Four-bearing structure
- Our CNC spindle motors are supplied directly from the factory, not purchased from the lowest-priced suppliers with unknown sources, thus ensuring known quality and reliability. All CNC Router Spindles from RicoCNC are original, with No fake.
Technical Characteristics
| Type | GDZ-24-1C |
|---|---|
| Power | 3.7Kw |
| Voltage | 380V |
| Current | 8.0A |
| Frequency | 800Hz |
| Speed | 24000rpm |
| Pole | 4P |
| Weight | 11.5KG |
| Bearing | 2x7005C, 2x7003C |
| Collet | ER20 |
Spindle Design
- The GDZ-24-1C CNC router spindle is a high-performance electric spindle designed for industrial applications that require high-speed and high-power processing. It is a good choice for upgrading and can significantly improve processing efficiency.
