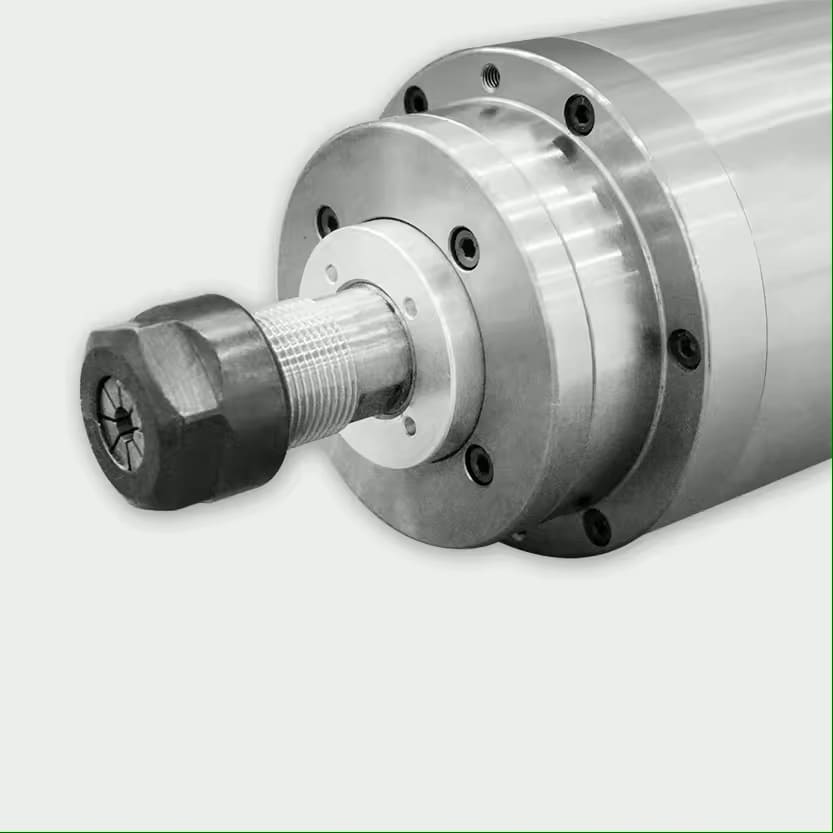

- GDZ-24-2
- ER20 CNC spindle motor
- 24000rpm CNC spindle
- 3.2kw spindle motor
- water-cooled spindle motors
- Φ105mm spindle motor
- CNC graving, milling spindle motor
- Three-bearing structure
- Our CNC spindle motors are supplied directly from the factory, not purchased from the lowest-priced suppliers with unknown sources, thus ensuring known quality and reliability. All CNC Router Spindles from RicoCNC are original, with No fake.
Technical Characteristics
| Type | GDZ-24-2 |
|---|---|
| Power | 3.2Kw |
| Voltage | 220V/380V |
| Current | 12A/7A |
| Frequency | 400Hz |
| Speed | 24000rpm |
| Weight | 12.5KG |
| Bearing | 2x7005C, 2x7003C |
| Collet | ER20 |

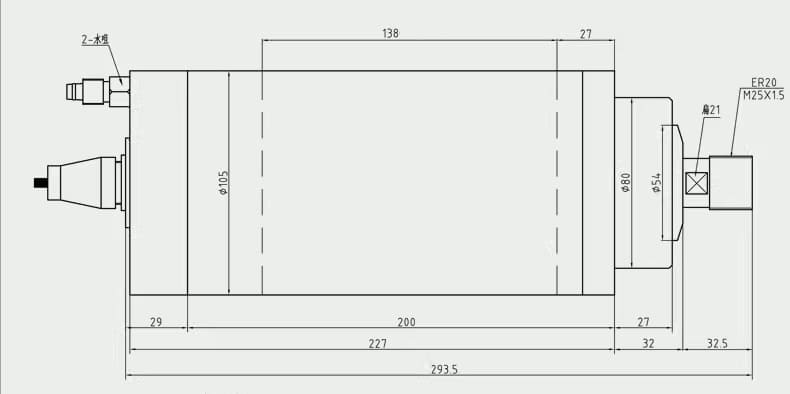

Spindle Design
- GDZ-24-2 has 7005C and 7003C bearings, providing high load capacity and stability. It has a high speed of 24000r/min and a strong power of 3.2KW, has high compatibility, is suitable for a wide range of industrial applications, and meets the needs of different customers.
