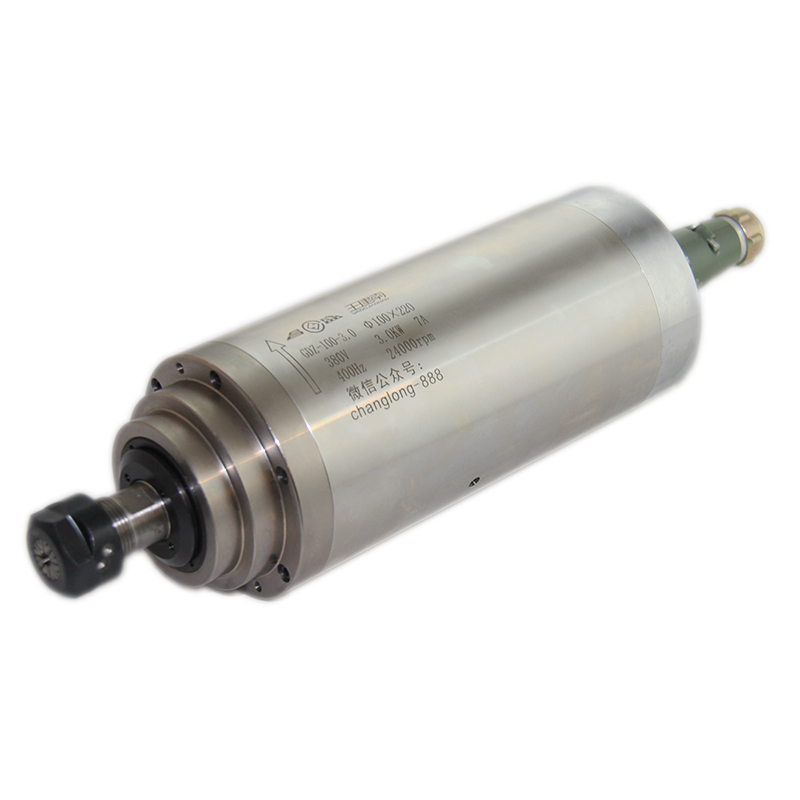

- GDZ100-3
- ER20 spindle motor
- 24000rpm spindle
- 3kw water-cooled spindle motor
- 220V/380v electro spindle motor
- water-cooled spindle motors
- Φ100mm spindle motor
- CNC milling spindle motor, CNC graving spindle motor
- Our CNC spindle motors are supplied directly from the factory, not purchased from the lowest-priced suppliers with unknown sources, thus ensuring known quality and reliability. All CNC Router Spindles from RicoCNC are original, with No fake.
Technical Characteristics
| Spindle Type | GDZ100-3 |
|---|---|
| Diameter | Φ100mm |
| Speed | 24000rpm |
| Power | 3kw |
| Voltage | 220V/380v |
| Current | 12A,7A |
| Frequency | 400HZ |
| Torque | 1.23Nm |
| Collet | ER20 |
| bearing type | 7005CP4*2+7003CP4*1 |
| Weight | 10KG |
Spindle Design
- Service life: 3kw water-cooled spindles mainly need attention to maintenance, frequently changing water or using industrial water coolers; such spindle life is much longer than air-cooled spindles! The axial and radial runout of water-cooled spindles is basically 0.003mm.
- The 3kw water-cooled spindle can significantly improve processing efficiency and is a good choice for upgrading
