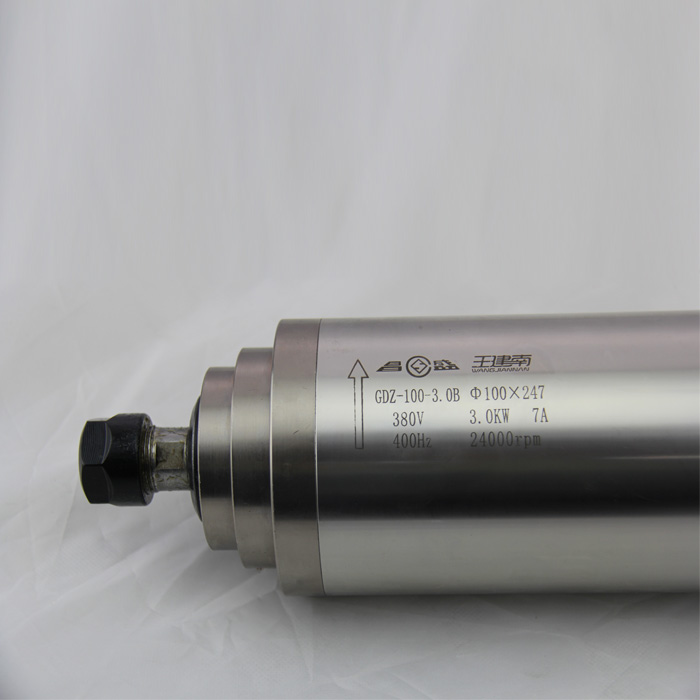

- GDZ100-3B (stone)
- ER20 spindle motor
- 24000rpm spindle
- 3kw water-cooled spindle motor
- 220V/380v electro spindle motor
- Stone processing spindle motor
- Φ100mm spindle motor
- CNC stone milling spindle motor, CNC stone graving spindle motor
- Our CNC spindle motors are supplied directly from the factory, not purchased from the lowest-priced suppliers with unknown sources, thus ensuring known quality and reliability. All CNC Router Spindles from RicoCNC are original, with No fake.
Technical Characteristics
| Spindle Type | GDZ100-3B |
|---|---|
| Diameter | Φ100mm |
| Speed | 24000rpm |
| Power | 3kw |
| Voltage | 220V/380v |
| Current | 12A,7A |
| Frequency | 400HZ |
| Torque | 1.23Nm |
| Collet | ER20 |
| bearing type | 7005*2+7002*2 |
| Weight | 10KG |

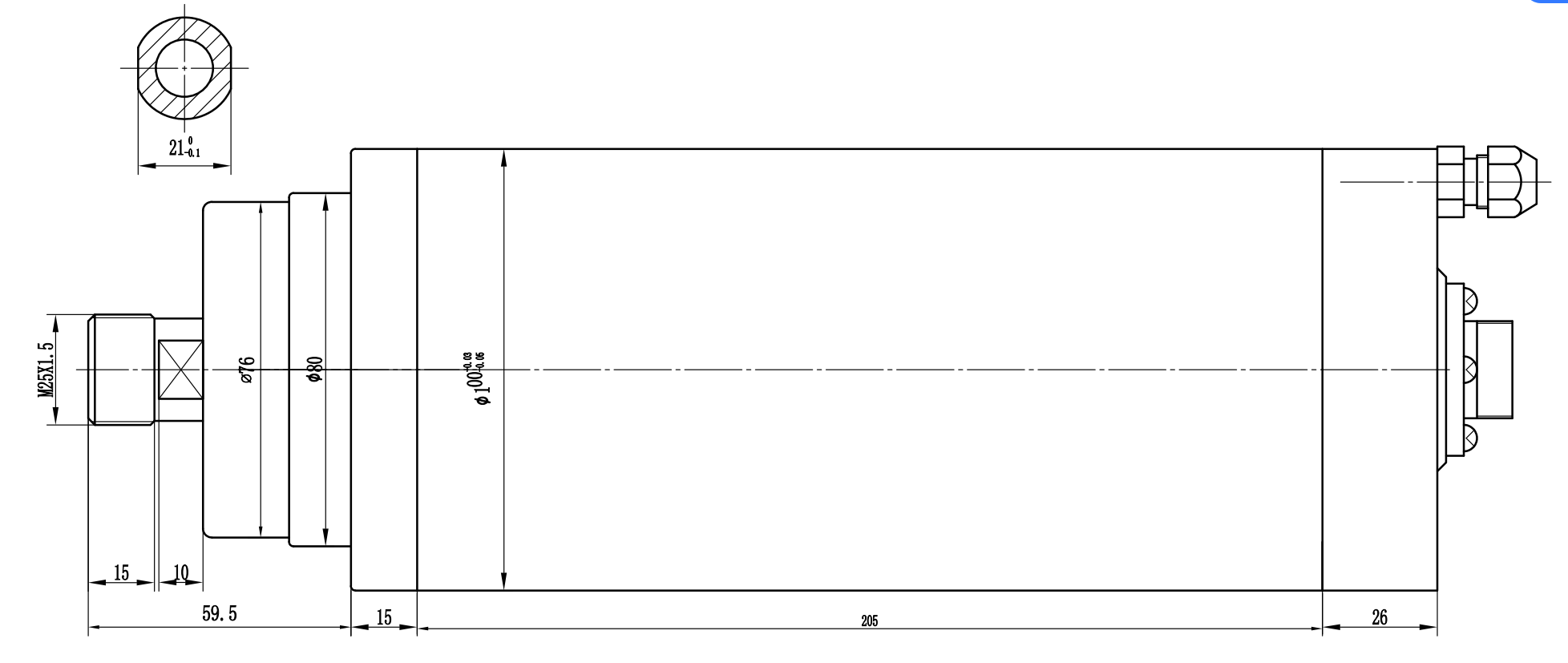

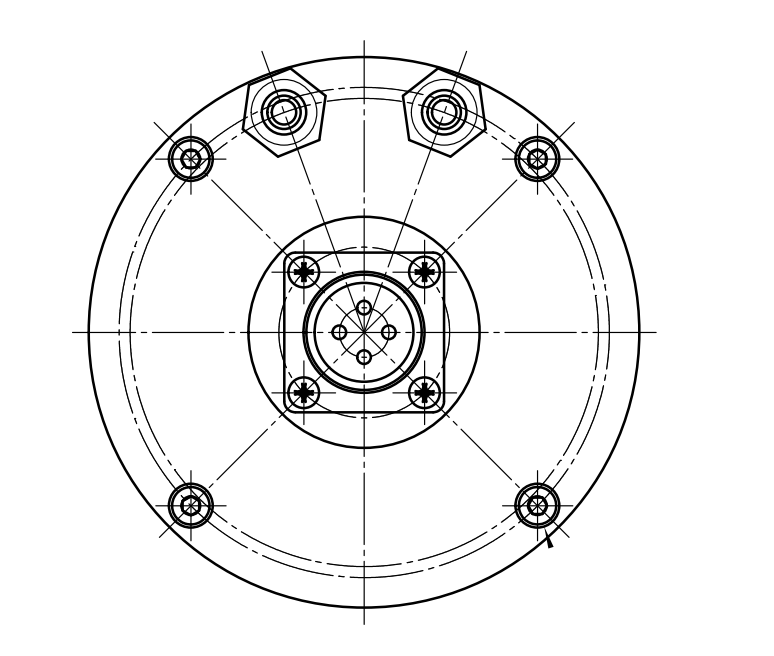

Spindle Design

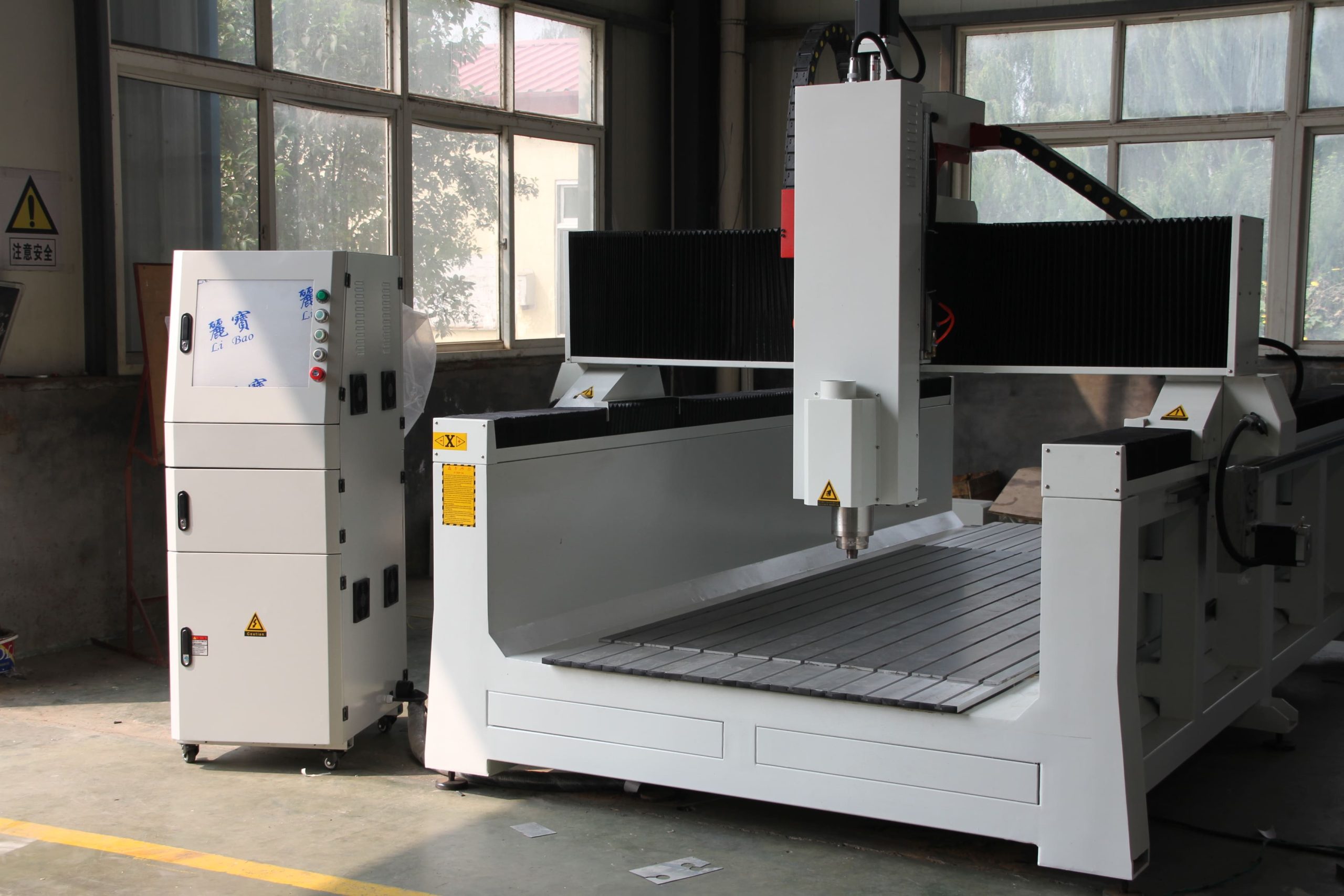

- GDZ100-3B is a spindle specially used for stone carving, with advantages in stone processing.You can carve shapes and write inscriptions on the stone
