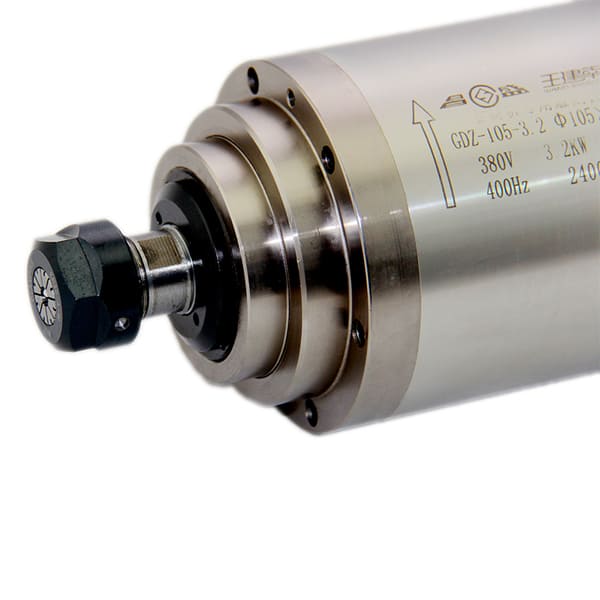

- GDZ105-3.2B (stone)
- ER20 spindle motor
- 24000rpm spindle
- 3.2kw water-cooled spindle motor
- 380v electro spindle motor
- Stone processing spindle motor
- Φ105mm spindle motor
- CNC stone milling spindle motor, CNC stone graving spindle motor
- Our CNC spindle motors are supplied directly from the factory, not purchased from the lowest-priced suppliers with unknown sources, thus ensuring known quality and reliability. All CNC Router Spindles from RicoCNC are original, with No fake.
Technical Characteristics
Spindle Type | GDZ100-3B |
---|---|

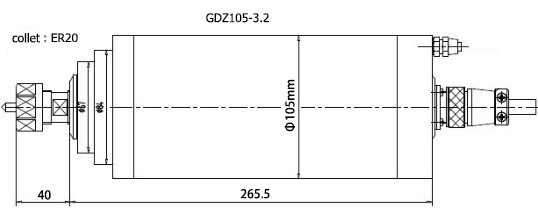

Diameter | Φ105mm |
Speed | 24000rpm |
Power | 3kw |
Voltage | 220V/380v |
Current | 12A/7A |
Frequency | 400HZ |
Torque | 1.23Nm |
Collet | ER20 |
bearing type | 7005CP4*2+7003CP4*1 |
Weight | 11KG |
Spindle Design
- High speed design: 24000rpm, for fast and fine processing.
- Wide voltage range: adapt to the voltage environment of 220V to 380V and flexibly respond to different industrial applications.
- Stable current: 12A/7A current to ensure stable motor operation.
- Fine torque control: 1.23Nm to ensure high precision and stability during processing.

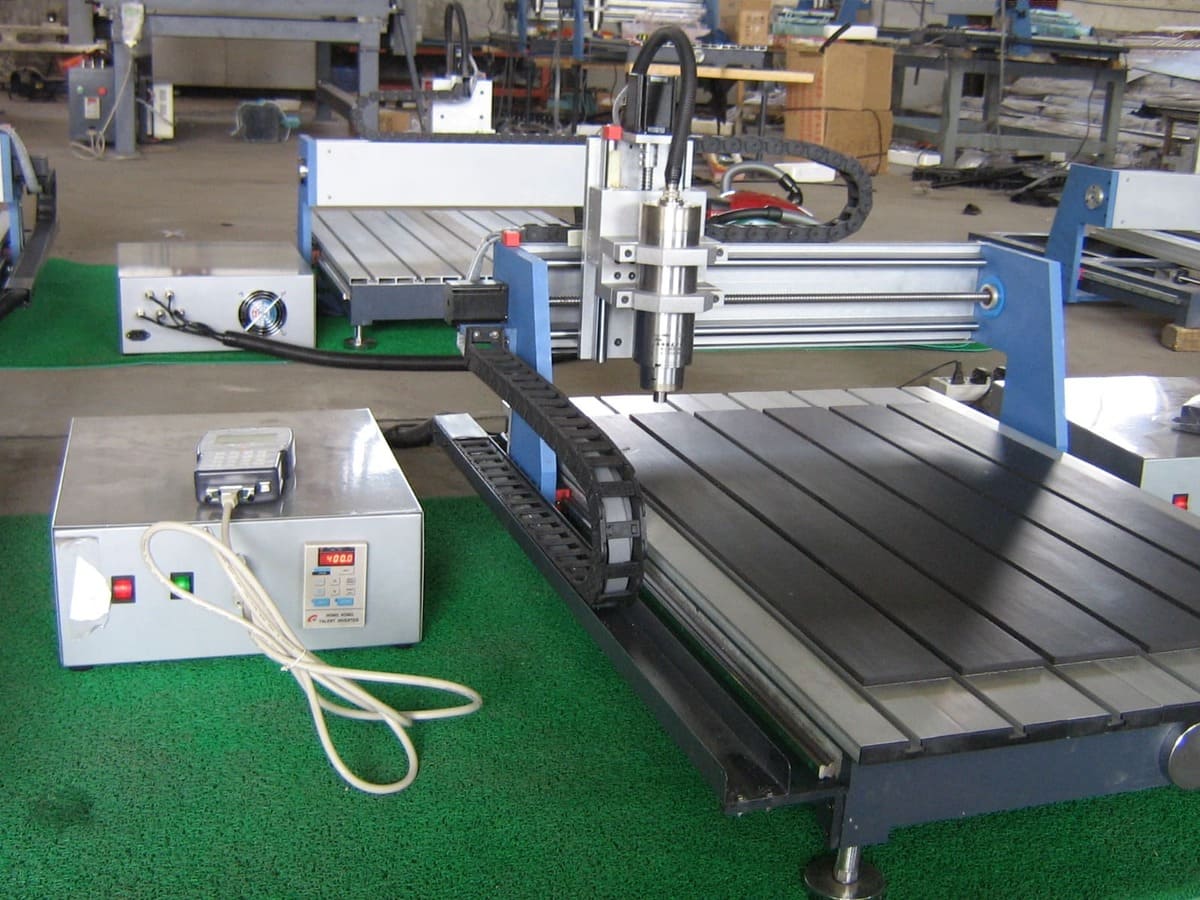

- Suitable for high-precision milling, drilling, engraving and other processing tasks, widely used in mold manufacturing, medical equipment, precision parts processing and other industries.
(It is not recommended to process stone or hard metal!)
