GDZ65-800 800W SPINDLE WATER COOLED ROUTER SPINDLE
- GDZ65-800
- ER11 spindle motor
- 24000rpm spindle
- 800w spindle motor
- spindle CNC milling
- water-cooled spindle motors
- Φ65mm spindle motor
- CNC milling spindle motor, CNC graving spindle motor
- Our CNC spindle motors are supplied directly from the factory, not purchased from the lowest-priced suppliers with unknown sources, thus ensuring known quality and reliability. All CNC router spindles from RicoCNC are original, with No fake.
Technical Characteristics
Weight2.6KG
| Spindle Type | GDZ65-800 |
|---|---|
| Diameter | Φ65mm |
| Speed | 24000rpm |
| Power | 800w |
| Voltage | 220v |
| Current | 5A |
| Frequency | 400HZ |
| Torque | 0.33Nm |
| Collet | ER11 |
| Collet nut | 3.175mm,4mm,6mm |
| bearing type | 7002CP4*1+7000CP4*1 |

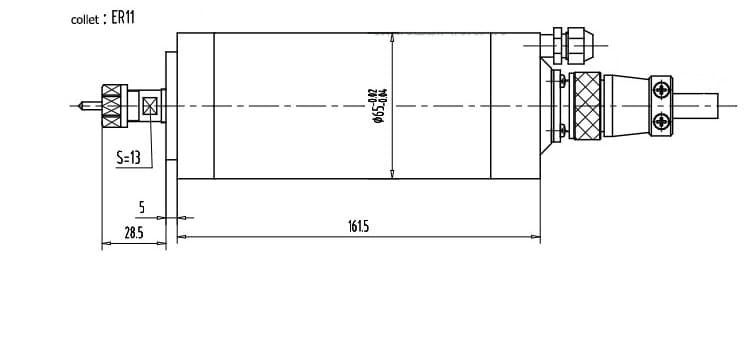

Spindle Design
BE CAREFUL！ This is GDZ65-800, it’s different from GDZ65-800A.
- The GDZ65-800 is different from GDZ65-800A, the main difference is the count of the bearings. The bearing type of GDZ65-800 is 7002CP4*1+7000CP4*1, while the GDZ65-800A use the 7002CP4*2+7000CP4*2
- The GDZ65-800 features a dual-bearing design, which is not as stable in precision as the four-bearing series. Therefore, it is more suitable for rough carving or processing of advertisements and nameplates. Its service life is not as long as that of the four-bearing series, but at the same time, it offers a more affordable price.
We also offer the similar type: GDZ65-800A
If you need any CNC spindle, welcome to send an inquiry
