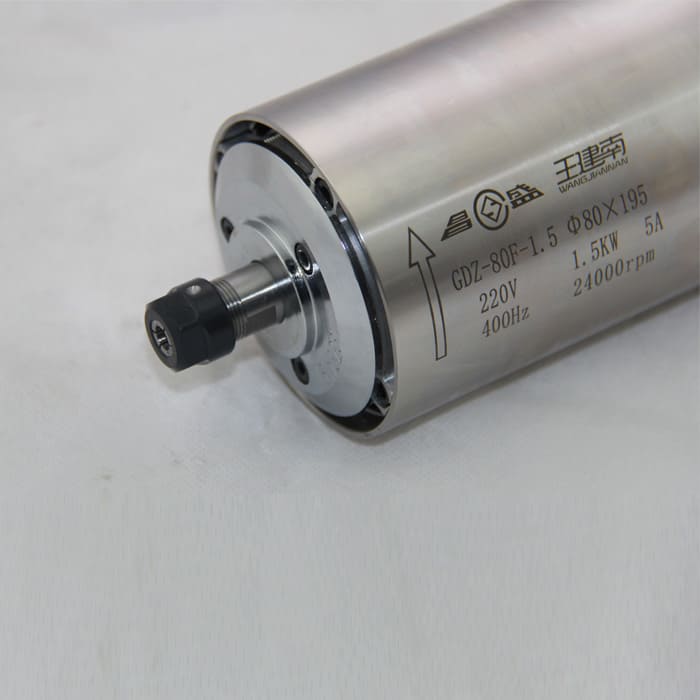

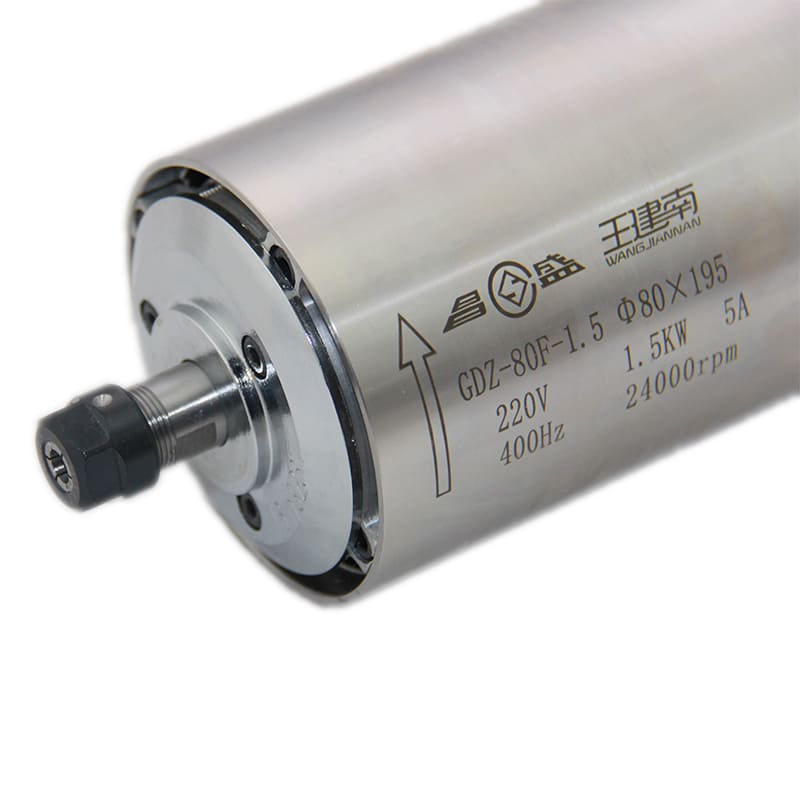

- GDZ80F-1.5
- ER11 spindle motor
- 24000rpm CNC spindle
- 1.5kw air-cooled spindle motor
- 220V electro spindle motor
- CNC milling, graving spindle motor
- Φ80mm spindle motor
- round air-cooling spindle
- Our CNC spindle motors are supplied directly from the factory, not purchased from the lowest-priced suppliers with unknown sources, thus ensuring known quality and reliability. All CNC Router Spindles from RicoCNC are original, with No fake.
Technical Characteristics
| Spindle Type | GDZ80F-1.5 |
|---|---|
| Diameter | Φ80mm |
| Speed | 24000rpm |
| Power | 1.5kw |
| Voltage | 220V |
| Current | 5A |
| Frequency | 400HZ |
| Torque | 0.91Nm |
| Collet | ER11 |
| bearing type | 7002CP4*2+7002CP4*2 |
| Weight | 4.4kg |

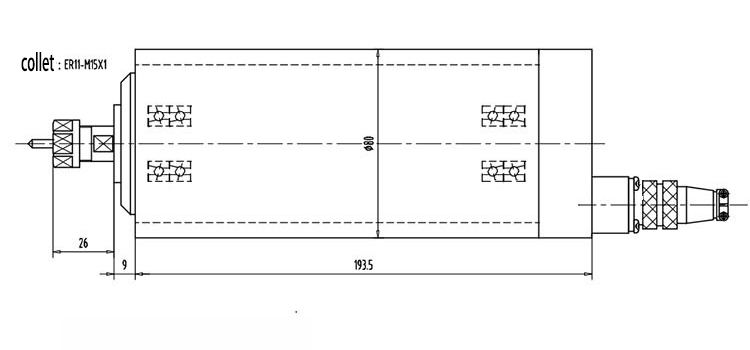

Spindle Design
- GDZ80-1.5F is suitable for medium-sized precision machining needs, or for milling, drilling, engraving and other processing tasks of medium-sized workpieces, and is widely used in mold manufacturing, precision machining and other industries.
