Top-Rated Spindle Manufacturer
JST High-Precision Spindles
JST is one of the famous electrical spindle manufacturers in China, with 15 years of experience.
JST remains committed to in-depth R&D and innovation of motor spindles, and has become a global leader in the spindle motor industry in China.
JST remains committed to in-depth R&D and innovation of motor spindles, and has become a global leader in the spindle motor industry in China.

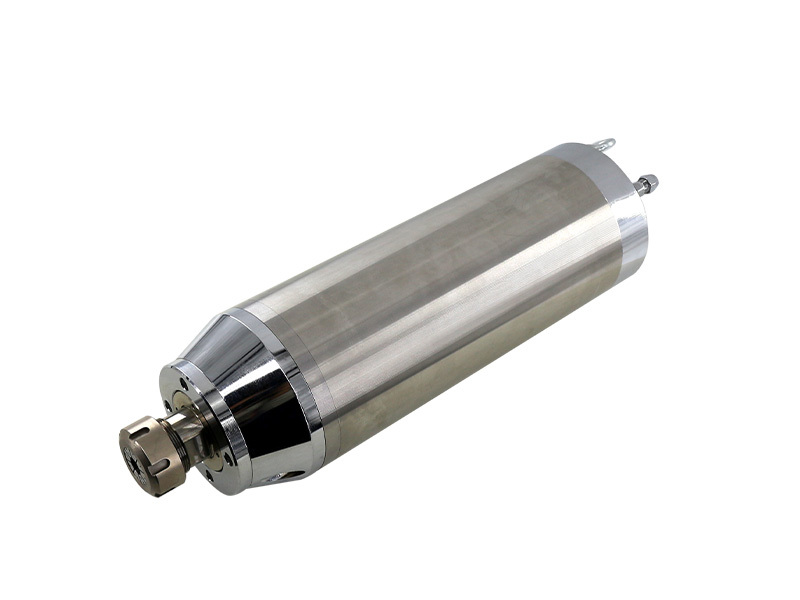

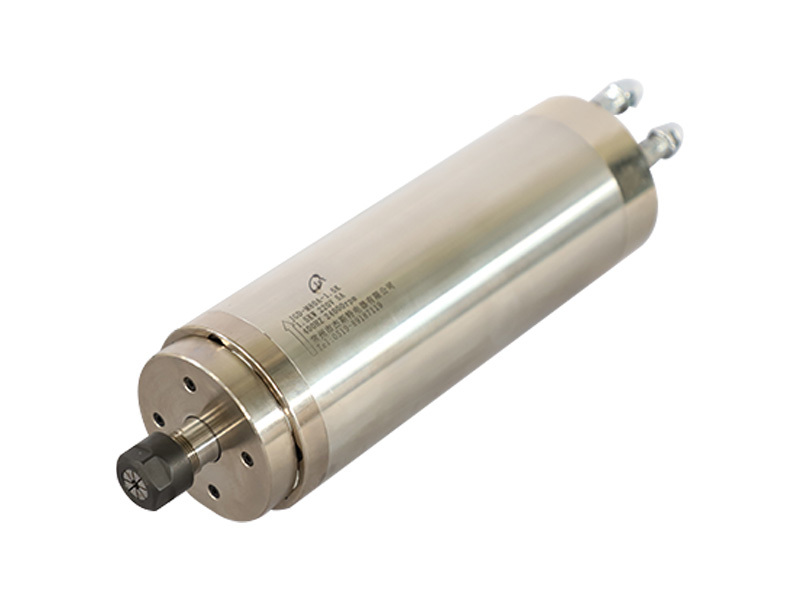

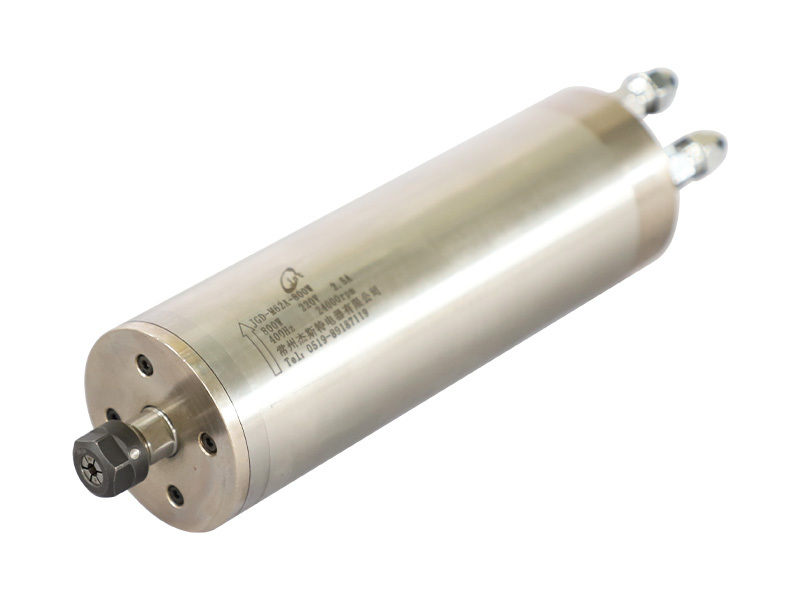

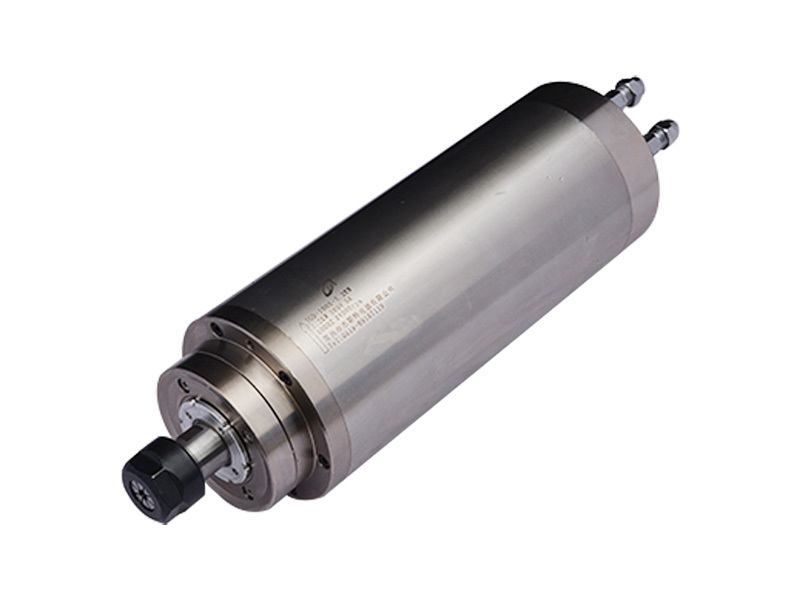

JGDM Water Cooled High Speed Precision Motorized Spindle Series
JGDM-62A-0.8
| Rated power (KW) | 0.8 |
| Voltage | 220 |
| Current | 2.5 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
| Torque (NM) | 0.32 |
JGDM-62B-1.2
| Rated power (KW) | 1.2 |
| Voltage | 220 |
| Current | 3.9 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
| Torque (NM) | 0.48 |
JGDM-62C-1.2
| Rated power (KW) | 1.2 |
| Voltage | 220 |
| Current | 3.9 |
| Frequency (Hz) | 700-1000 |
| Speed (r/min) | 42000-60000 |
| Torque (NM) | 0.32-0.25 |
JGDM-80A-1.5
| Rated power (KW) | 1.5 |
| Voltage | 220 |
| Current | 5.0 |
| Frequency (Hz) | 200-400 |
| Speed (r/min) | 12000-24000 |
| Torque (NM) | 0.6 |
JGDM-125E-5.5
| Rated power (KW) | 5.5 |
| Voltage | 380 |
| Current | 11.3 |
| Frequency (Hz) | 400-800 |
| Speed (r/min) | 12000-24000 |
| Torque (NM) | 4.37-2.2 |
JGDM-125F-7.5
| Rated power (KW) | 7.5 |
| Voltage | 380 |
| Current | 15.8 |
| Frequency (Hz) | 400-800 |
| Speed (r/min) | 12000-24000 |
| Torque (NM) | 5.9-2.98 |

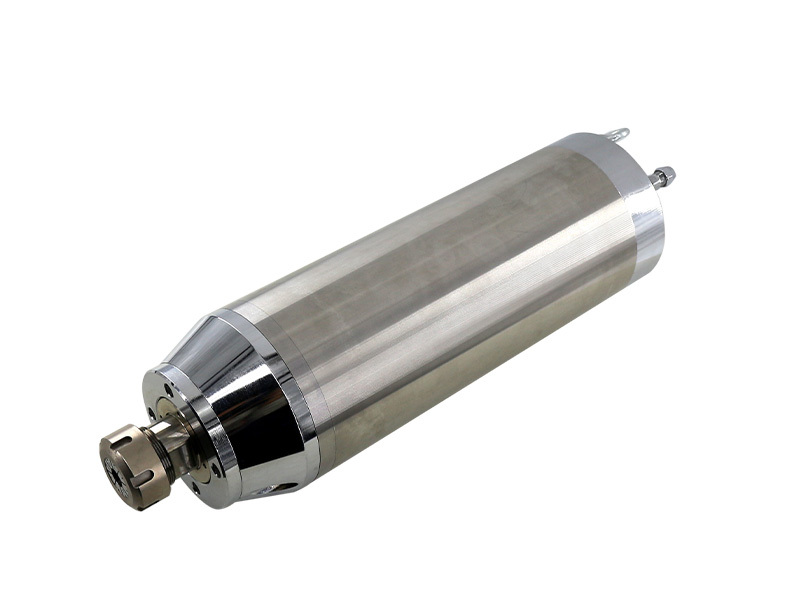

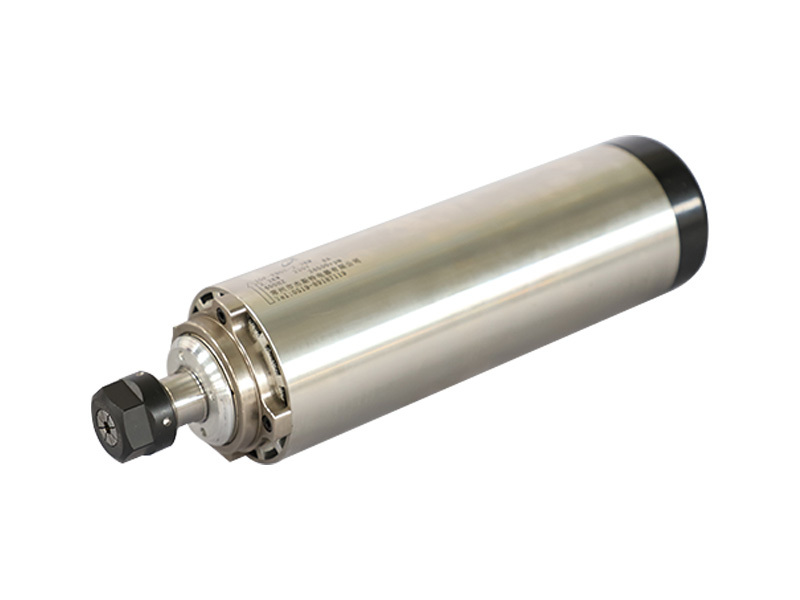

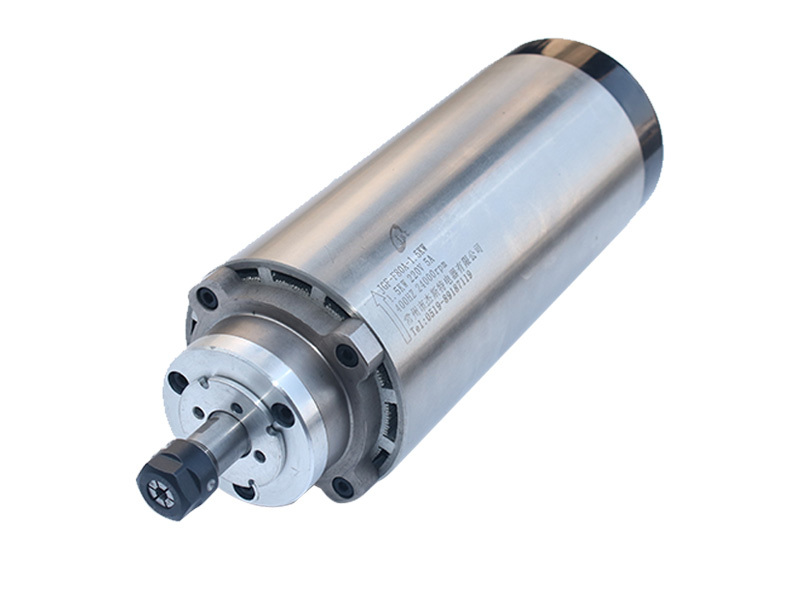

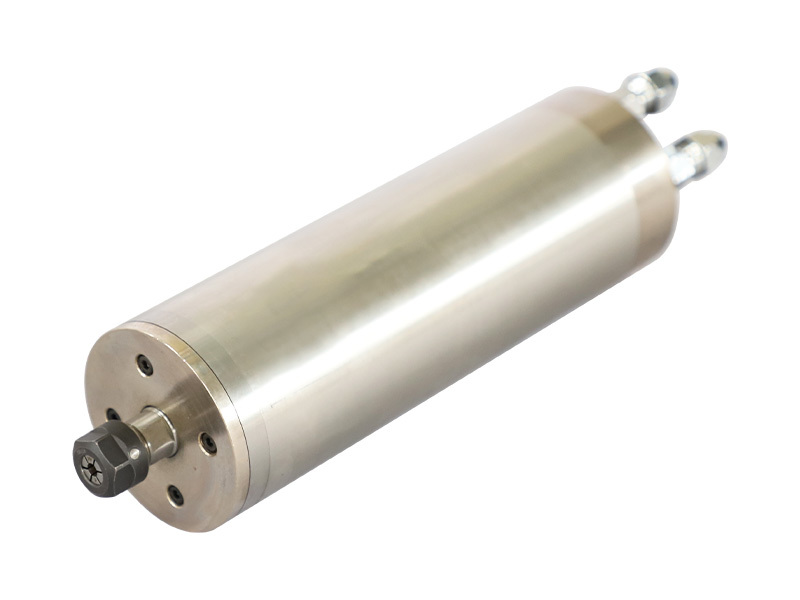

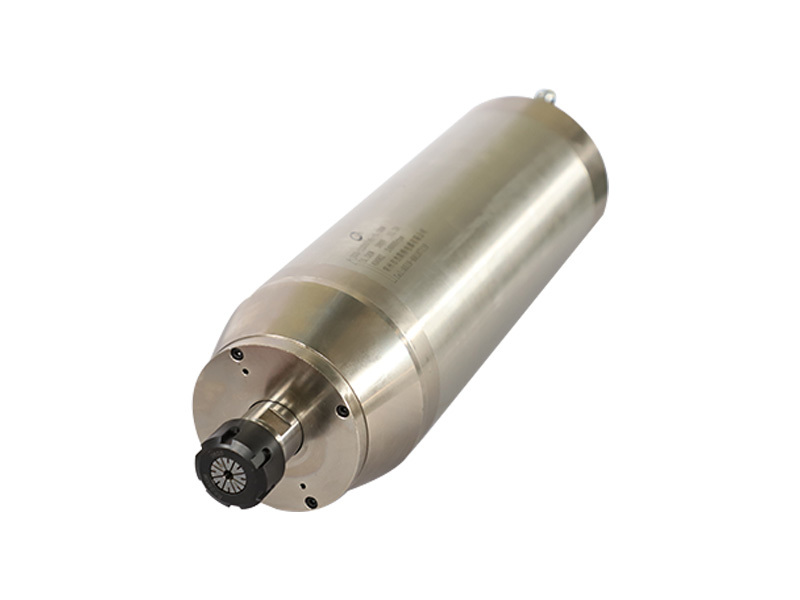

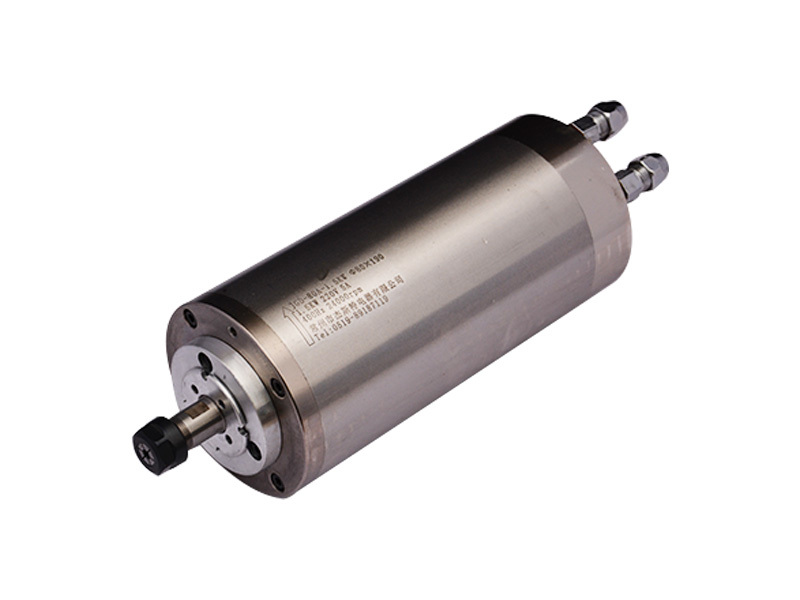

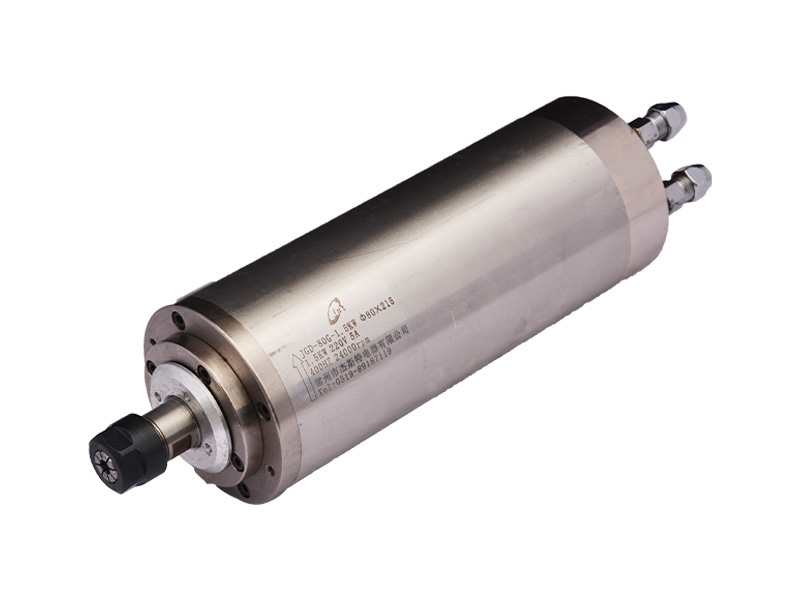

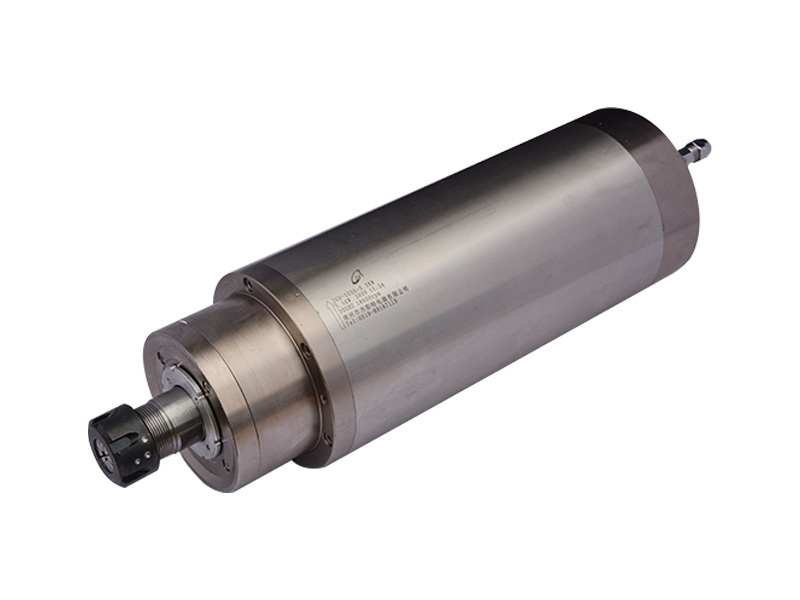

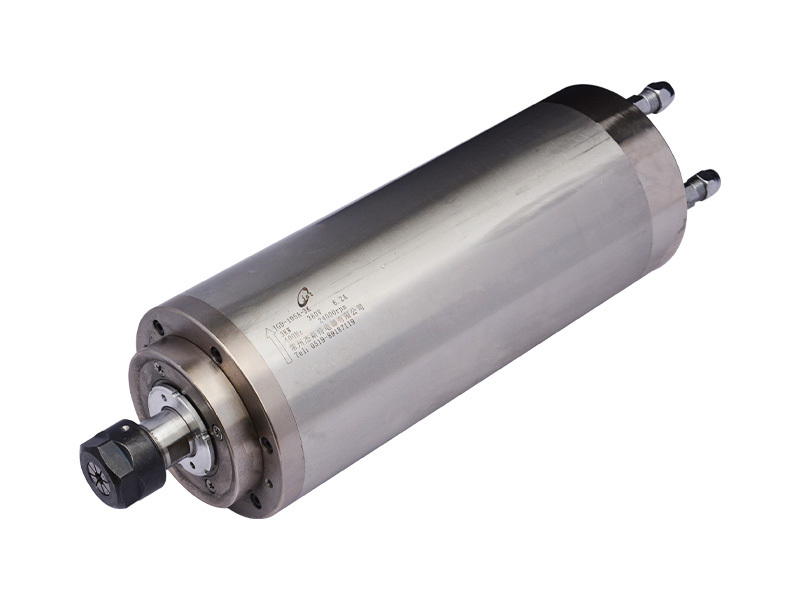

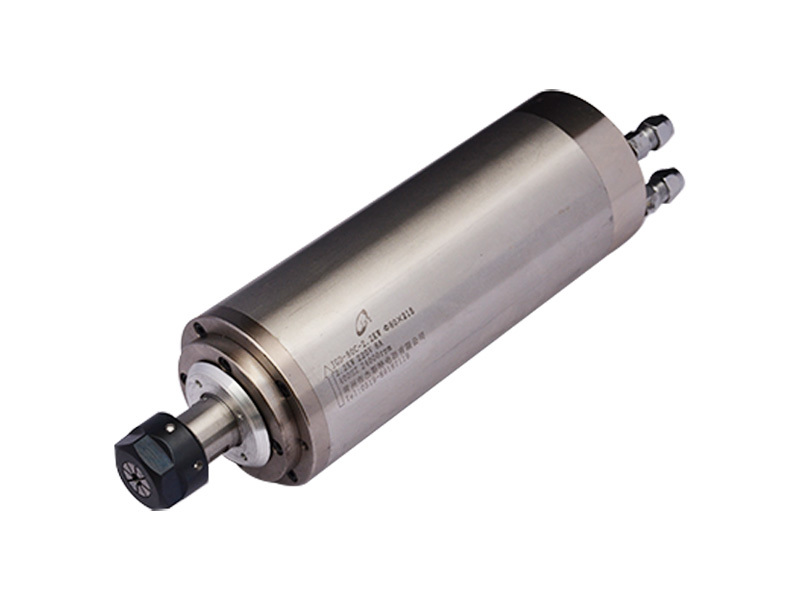

JGD Round Water-cooled Motorized Spindle Series
JGD-48A-0.3
| Rated power (KW) | 0.3 |
| Voltage | 75 |
| Current | 2.5 |
| Frequency (Hz) | 333-1000 |
| Speed (r/min) | 20000-60000 |

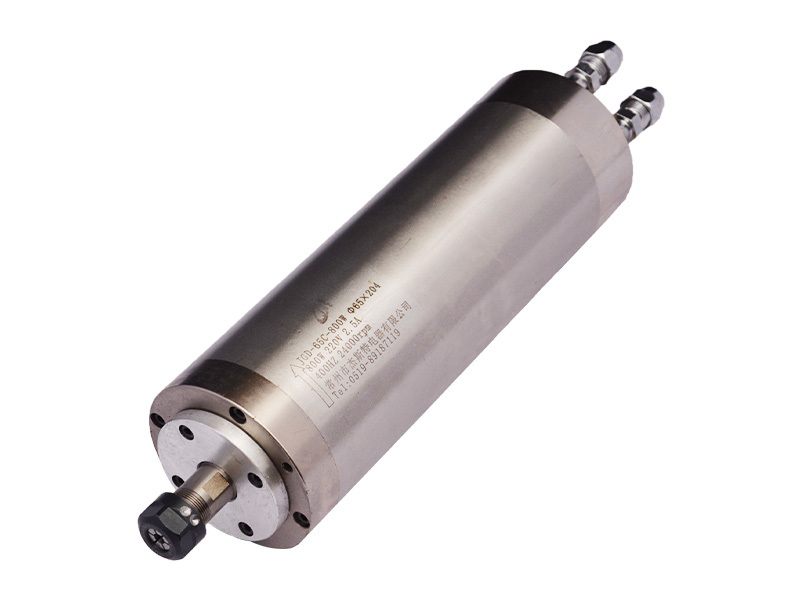

JGD-65C-0.8
| Rated power (KW) | 0.8 |
| Voltage | 220 |
| Current | 2.5 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-65D-1.5
| Rated power (KW) | 1.5 |
| Voltage | 220 |
| Current | 5.0 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-80A-1.5
| Rated power (KW) | 1.5 |
| Voltage | 220 |
| Current | 5.0 |
| Frequency (Hz) | 200-400 |
| Speed (r/min) | 12000-24000 |
| Torque (NM) | 0.6 |
JGD-80E4-1.5
| Rated power (KW) | 1.5 |
| Voltage | 220 |
| Current | 5.0 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-80G-1.5
| Rated power (KW) | 1.5 |
| Voltage | 220 |
| Current | 6.0 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-80G4-1.5
| Rated power (KW) | 1.5 |
| Voltage | 220 |
| Current | 6.0 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-80C-2.2
| Rated power (KW) | 2.2 |
| Voltage | 220 |
| Current | 8.0 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-80C3-2.2
| Rated power (KW) | 2.2 |
| Voltage | 220 |
| Current | 8.0 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-85A-2.2
| Rated power (KW) | 2.2 |
| Voltage | 220 |
| Current | 8.0 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-100A-3
| Rated power (KW) | 3 |
| Voltage | 220/380 |
| Current | 10.5/6.2 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-100A2-3
| Rated power (KW) | 3 |
| Voltage | 220/380 |
| Current | 10.5/6.2 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-100S-3.2
| Rated power (KW) | 3.2 |
| Voltage | 220/380 |
| Current | 11.2/6.5 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-100S2-3.2
| Rated power (KW) | 3.2 |
| Voltage | 220/380 |
| Current | 11.2/6.5 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-105A-3.2
| Rated power (KW) | 3.2 |
| Voltage | 220/380 |
| Current | 11.2/6.5 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-125S-4.5
| Rated power (KW) | 4.5 |
| Voltage | 380 |
| Current | 9.3 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGD-125A-5.5
| Rated power (KW) | 5.5 |
| Voltage | 380 |
| Current | 11.3 |
| Frequency (Hz) | 300-400 |
| Speed (r/min) | 18000-24000 |
JGD-125S4-5.5
| Rated power (KW) | 5.5 |
| Voltage | 380 |
| Current | 11.3 |
| Frequency (Hz) | 300-400 |
| Speed (r/min) | 18000-24000 |
JGD-125E-7.5
| Rated power (KW) | 7.5 |
| Voltage | 380 |
| Current | 15.8 |
| Frequency (Hz) | 600-800 |
| Speed (r/min) | 18000-24000 |

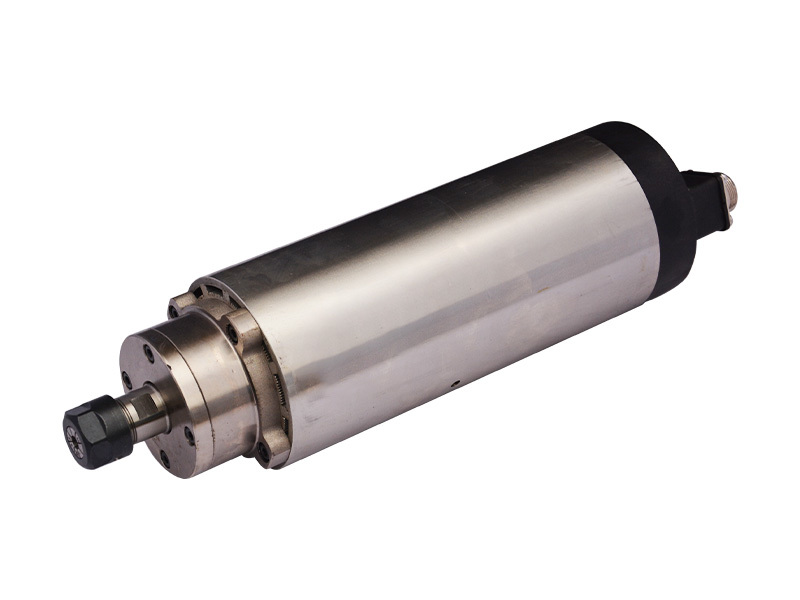

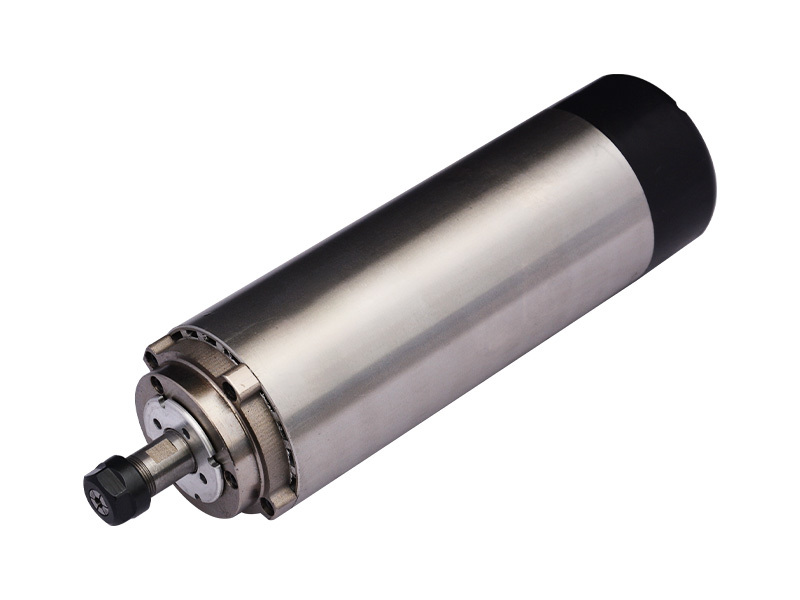

JGF Round Air Cooled Motorized Spindle Series

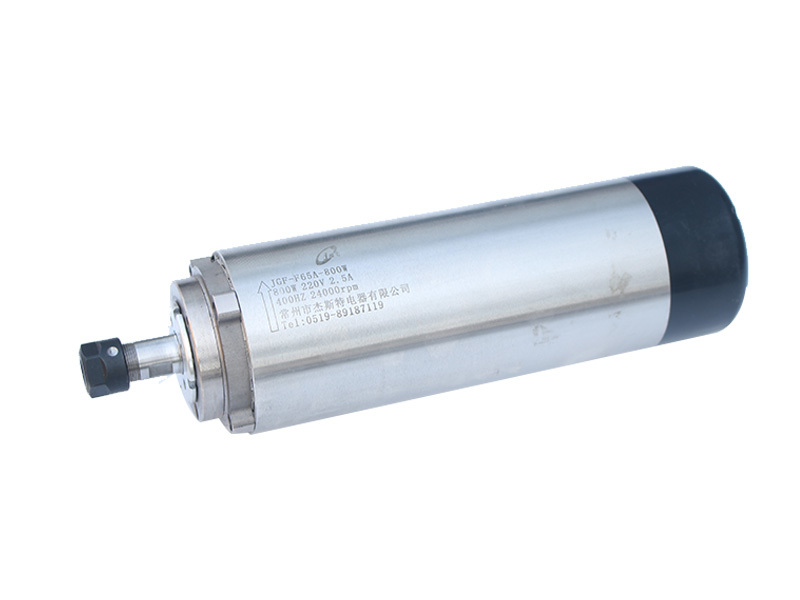

JGF-F65A-0.8
| Rated power(KW) | 0.8 |
| Voltage | 220 |
| Current(A) | 2.5 |
| Frequency(Hz) | 400 |
| Speed(r/min) | 24000 |
JGF-F65C-1.5
| Rated power(KW) | 1.5 |
| Voltage | 220 |
| Current(A) | 5.0 |
| Frequency(Hz) | 400 |
| Speed(r/min) | 24000 |
JGF-F80A-1.5
| Rated power (KW) | 1.5 |
| Voltage | 220 |
| Current | 5.0 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGF-F80G-1.5
| Rated power (KW) | 1.5 |
| Voltage | 220 |
| Current | 5.0 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
JGF-F80E-2.2
| Rated power (KW) | 2.2 |
| Voltage | 220 |
| Current | 8.0 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |

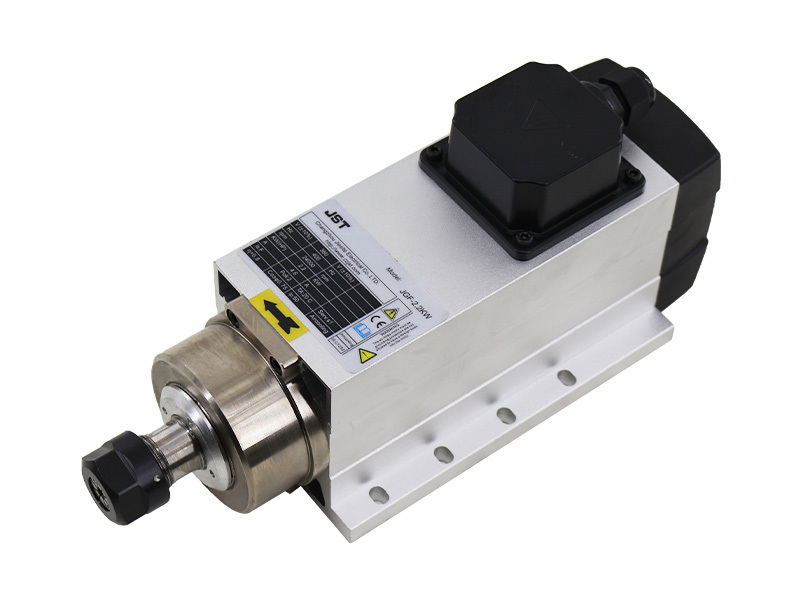

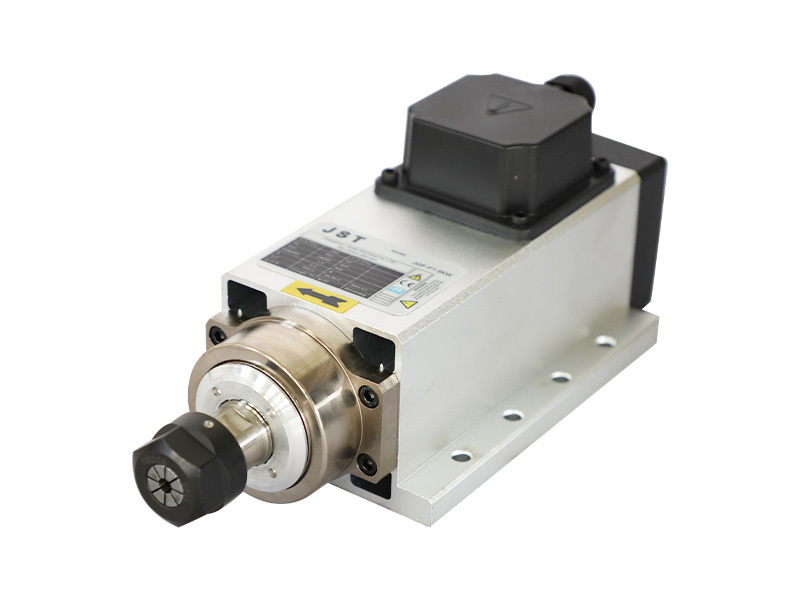

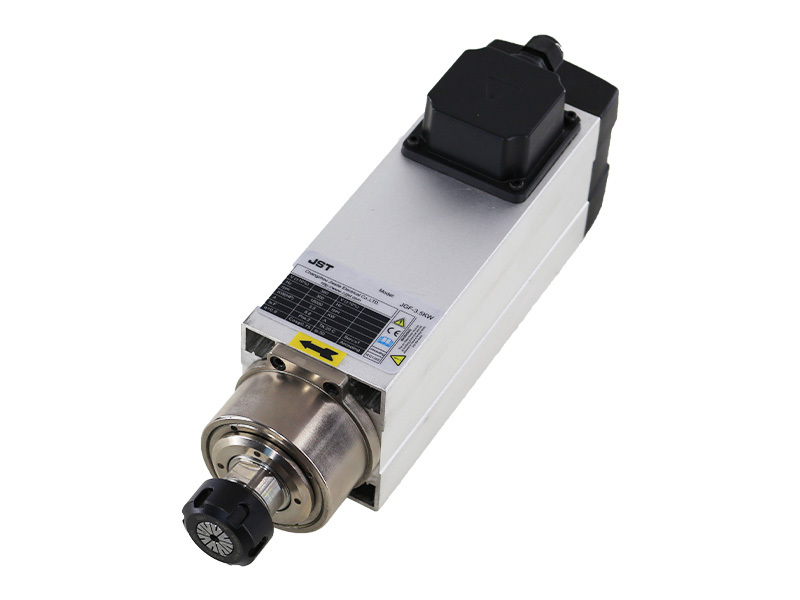

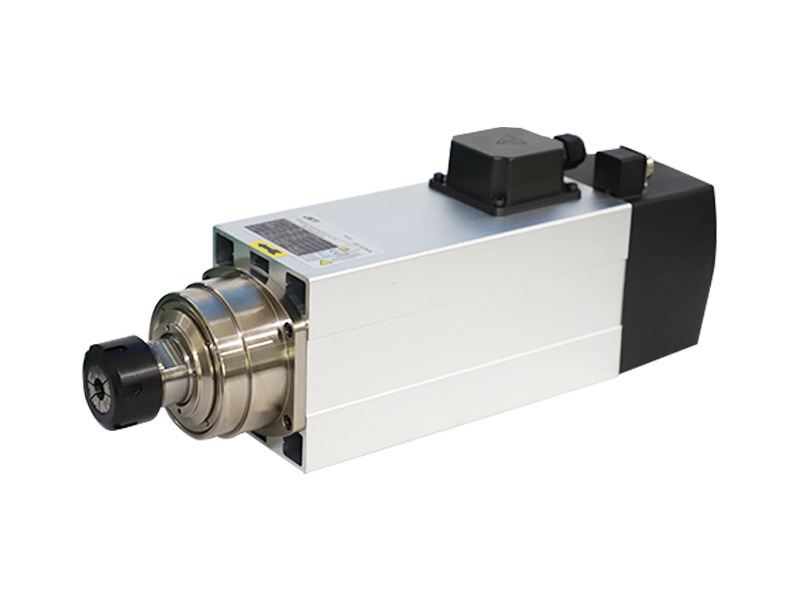

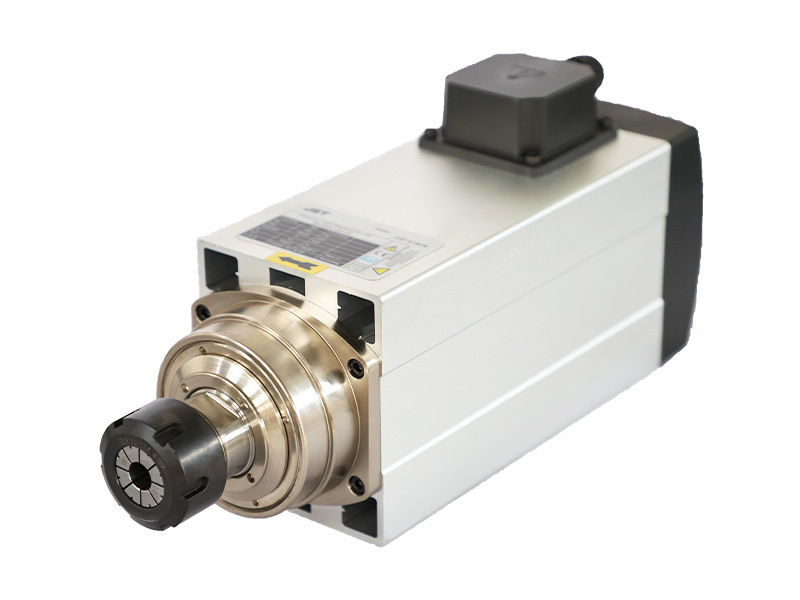

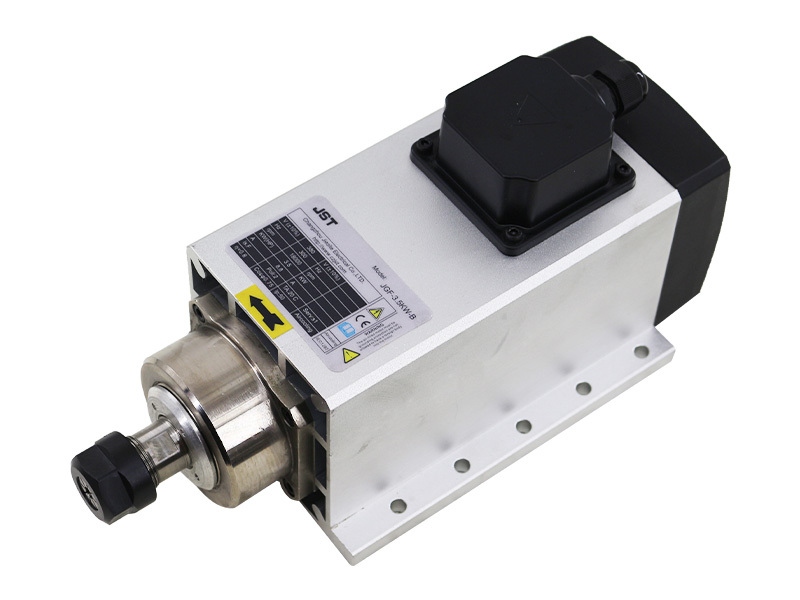

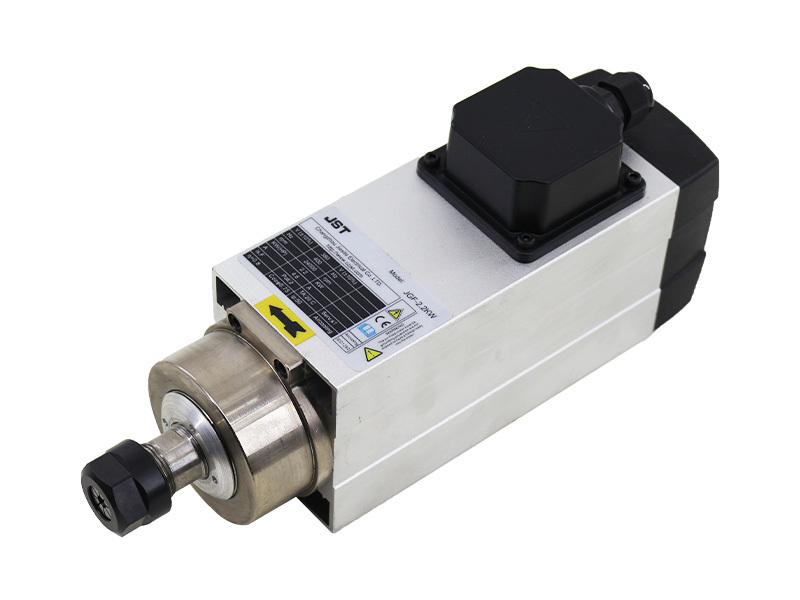

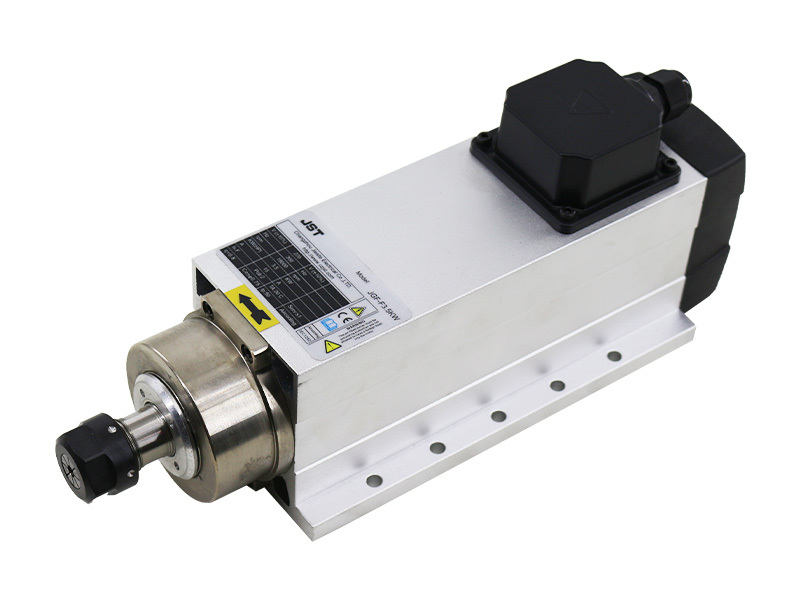

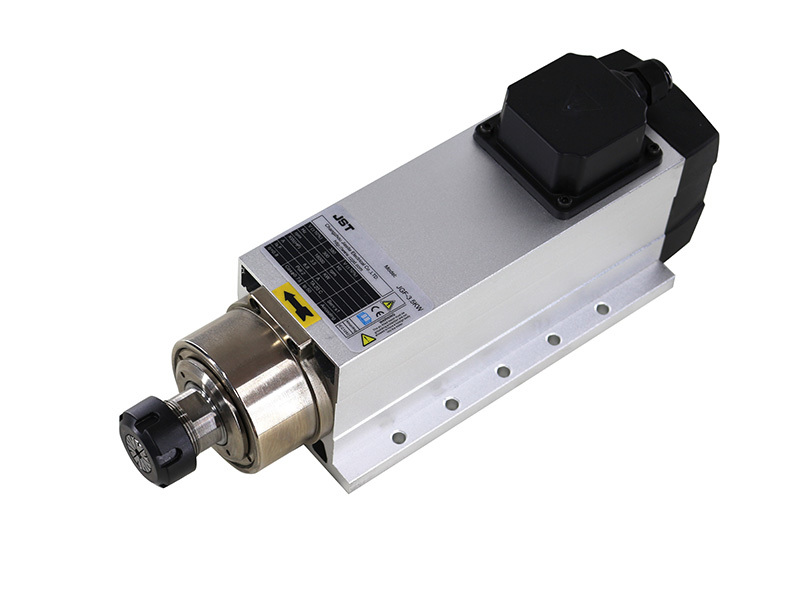

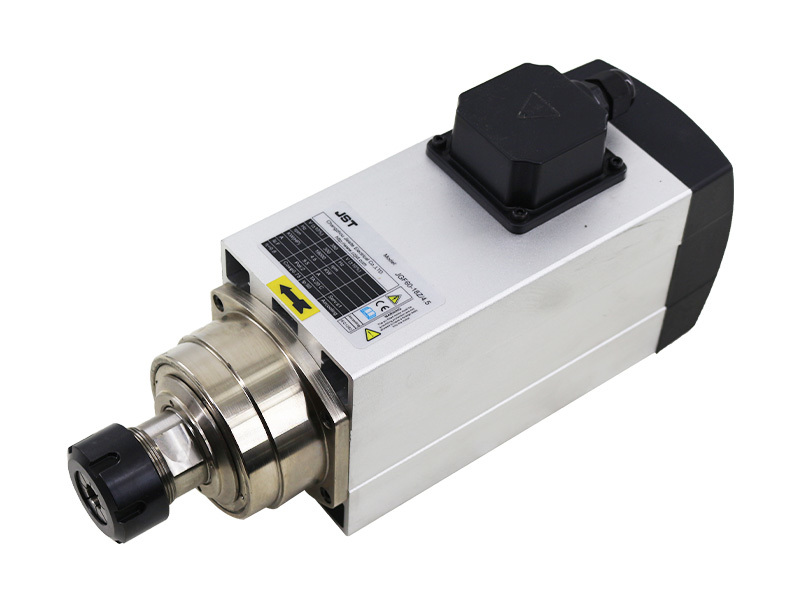

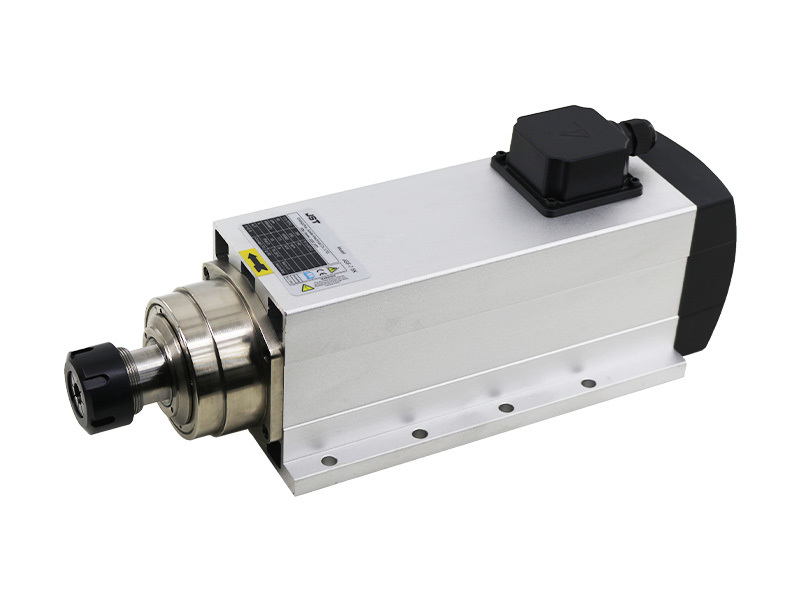

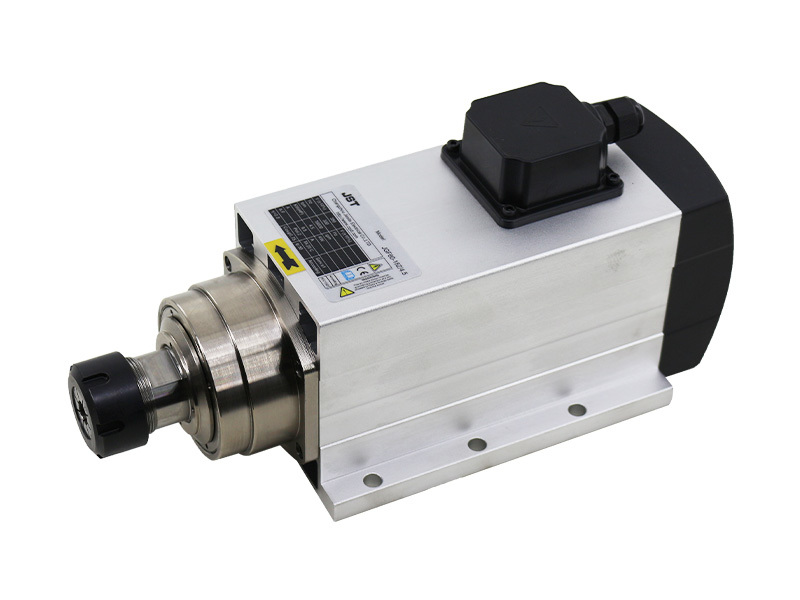

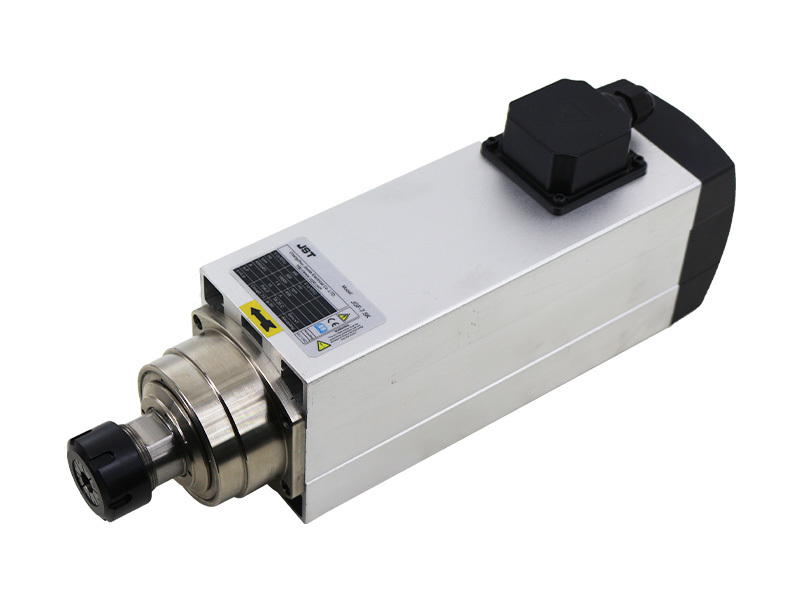

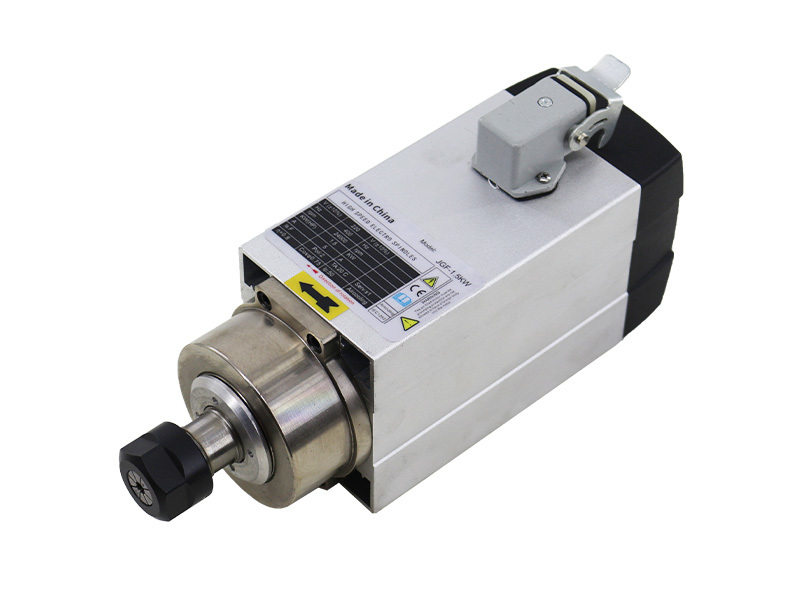

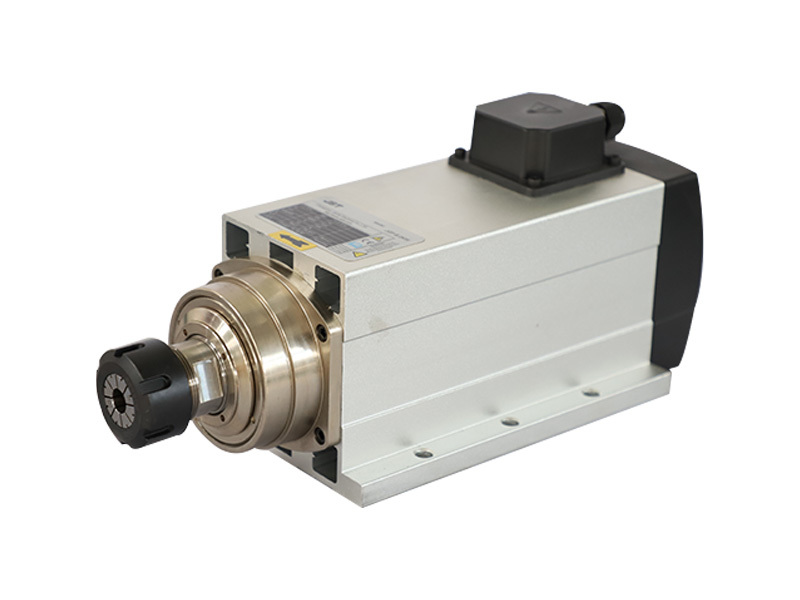

JGF Electromechanical Spindle Series of Square Air
JGF47-18Z/1.5
| Rated power(KW) | 1.5 |
| Voltage(V) | 220 |
| Current(A) | 5.0 |
| frequency(Hz) | 300 |
| speed(r/min) | 18000 |
| Torque(NM) | 0.8 |
JGFB37-18Z/1.5
| Rated power(KW) | 1.5 |
| Voltage(V) | 220 |
| Current(A) | 5.0 |
| Frequency (Hz) | 300 |
| Speed(r/min) | 18000 |
| Torque(NM) | 0.8 |
JGFB37-18Z/2.2
| Rated power(KW) | 2.2 |
| Voltage(V) | 380 |
| Current(A) | 4.6 |
| Frequency (Hz) | 300 |
| Speed(r/min) | 18000 |
| Torque(NM) | 1.17 |
JGF47-18Z/2.2
| Rated power(KW) | 2.2 |
| Voltage(V) | 380 |
| Current(A) | 4.6 |
| Frequency(Hz) | 300 |
| Speed(r/min) | 18000 |
| Torque(NM) | 1.17 |
JGFB47-18Z/2.2
| rated power(KW) | 2.2 |
| Voltage(V) | 380 |
| Current(A) | 4.6 |
| Frequency(Hz) | 300 |
| Rotational speed(r/min) | 18000 |
| Torque(NM) | 1.17 |
JGF47-18Z/3.5
| rated power(KW) | 3.5 |
| Voltage(V) | 380 |
| Current(A) | 7.0 |
| Frequency(Hz) | 300 |
| Rotational speed(r/min) | 18000 |
| Torque(NM) | 1.59 |
JGFB47-18Z/3.5
| rated power(KW) | 3.5 |
| Voltage(V) | 380 |
| Current(A) | 7.0 |
| Frequency(Hz) | 300 |
| Rotational speed(r/min) | 18000 |
| Torque(NM) | 1.59 |
JGFB47-20-18Z/3.5
| rated power(KW) | 3.5 |
| Voltage(V) | 380 |
| Current(A) | 7.0 |
| Frequency(Hz) | 300 |
| Rotational speed(r/min) | 18000 |
| Torque(NM) | 1.59 |
JGFB53-18Z/3.5
| Rated power (KW) | 3.5 |
| Voltage | 380 |
| Current | 7.0 |
| Frequency (Hz) | 300 |
| Speed (r/min) | 18000 |
| Torque (NM) | 1.33 |
JGF60-18Z/4.5
| Rated power (KW) | 4.5 |
| Voltage | 380 |
| Current | 9.0 |
| Frequency (Hz) | 300 |
| Speed (r/min) | 18000 |
| Torque (NM) | 2.39 |
JGFB60-18Z/4.5
| Rated power (KW) | 4.5 |
| Voltage | 380 |
| Current | 9.0 |
| Frequency (Hz) | 300 |
| Speed (r/min) | 18000 |
| Torque (NM) | 2.39 |
JGF60-18Z/6
| Rated power (KW) | 6 |
| Voltage | 380 |
| Current | 12.0 |
| Frequency (Hz) | 300 |
| Speed (r/min) | 18000 |
| Torque (NM) | 3.18 |
JGFB60-18Z/6
| Rated power (KW) | 6 |
| Voltage | 380 |
| Current | 12.0 |
| Frequency (Hz) | 300 |
| Speed (r/min) | 18000 |
| Torque (NM) | 3.18 |
JGF60-18Z/6/D
| Rated power (KW) | 6 |
| Voltage | 380 |
| Current | 12.0 |
| Frequency (Hz) | 300 |
| Speed (r/min) | 18000 |
| Torque (NM) | 3.18 |
JGFB60-18Z/6/D
| Rated power (KW) | 6 |
| Voltage | 380 |
| Current | 12.0 |
| Frequency (Hz) | 300 |
| Speed (r/min) | 18000 |
| Torque (NM) | 3.18 |
JGF60-24Z/6/A
| Rated power (KW) | 6 |
| Voltage | 380 |
| Current | 12.0 |
| Frequency (Hz) | 400 |
| Speed (r/min) | 24000 |
| Torque (NM) | 2.38 |
JGF60-18Z/7.5
| Rated power (KW) | 7.5 |
| Voltage | 380 |
| Current | 15.6 |
| Frequency (Hz) | 300 |
| Speed (r/min) | 18000 |
| Torque (NM) | 3.98 |
JGFB60-18Z/7.5
| Rated power (KW) | 7.5 |
| Voltage | 380 |
| Current | 15.6 |
| Frequency (Hz) | 300 |
| Speed (r/min) | 18000 |
| Torque (NM) | 3.98 |

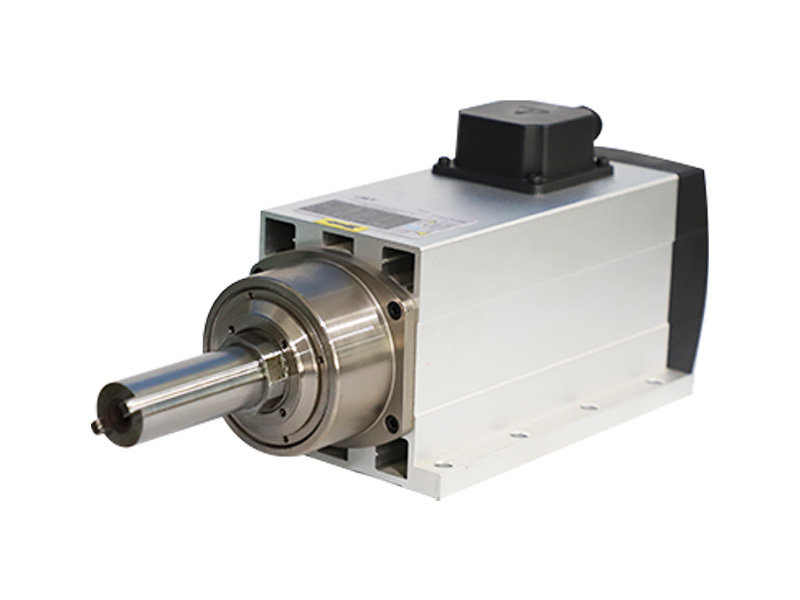

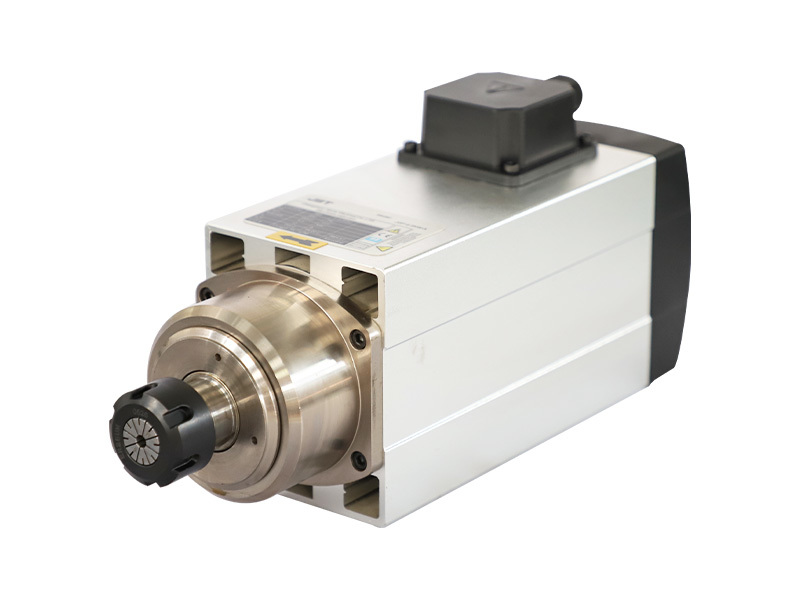

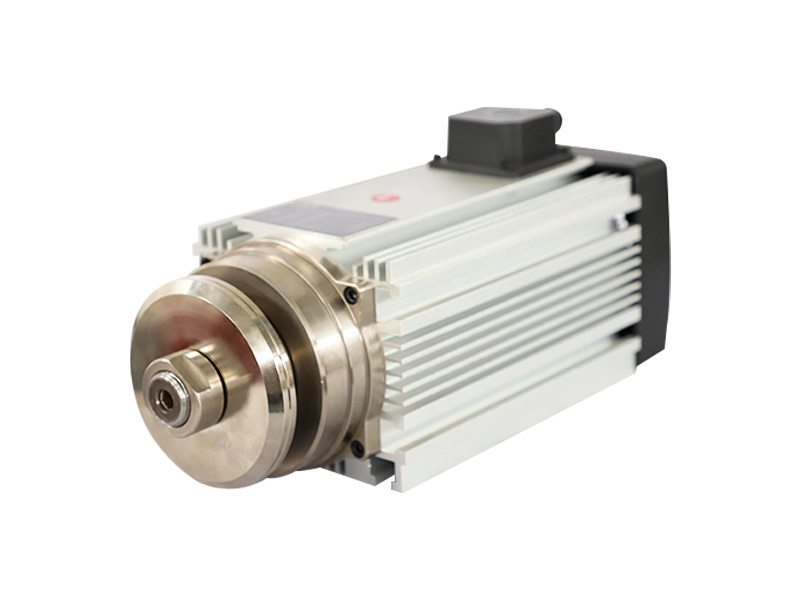

JGF Low Noise Square Air Cooled Engraving Electromechanical Spindle Series
JGF60-18Z/6/F
| Rated power (KW) | 6 |
| Voltage | 380 |
| Current | 12 |
| Frequency (Hz) | 300 |
| Speed (r/min) | 18000 |
| Torque (NM) | 3.18 |
JGF60-18Z/7.5/F
| Rated power (KW) | 7.5 |
| Voltage | 380 |
| Current | 15.6 |
| Frequency (Hz) | 300 |
| Speed (r/min) | 18000 |
| Torque (NM) | 3.98 |
JGF71-24Z/9
| Rated power (KW) | 9 |
| Voltage | 380 |
| Current | 19.5 |
| Frequency (Hz) | 800 |
| Speed (r/min) | 24000 |
| Torque (NM) | 3.6 |
JGF71-24Z/12
| Rated power (KW) | 12 |
| Voltage | 380 |
| Current | 22.8 |
| Frequency (Hz) | 800 |
| Speed (r/min) | 24000 |
| Torque (NM) | 4.7 |
JGF87-18Z/13.5
| Rated power (KW) | 13.5 |
| Voltage | 380 |
| Current | 31 |
| Frequency (Hz) | 600 |
| Speed (r/min) | 18000 |
| Torque (NM) | 6.36 |

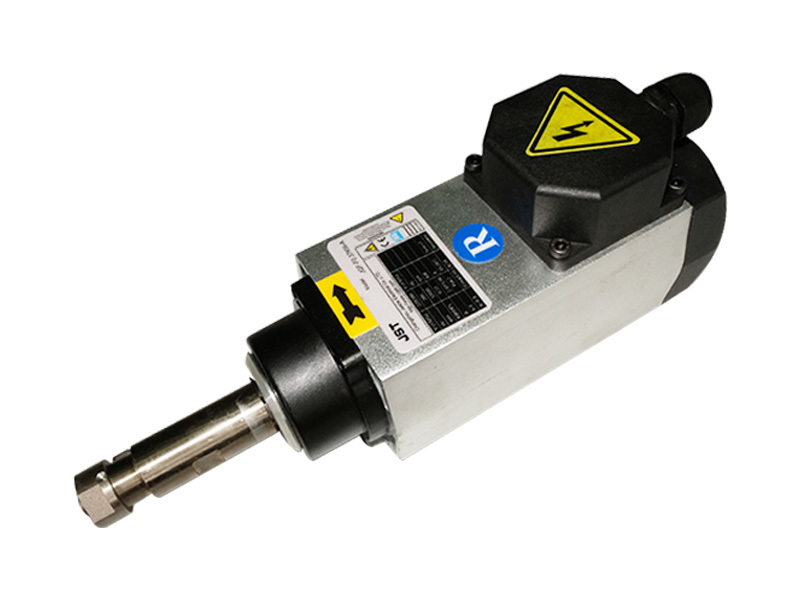

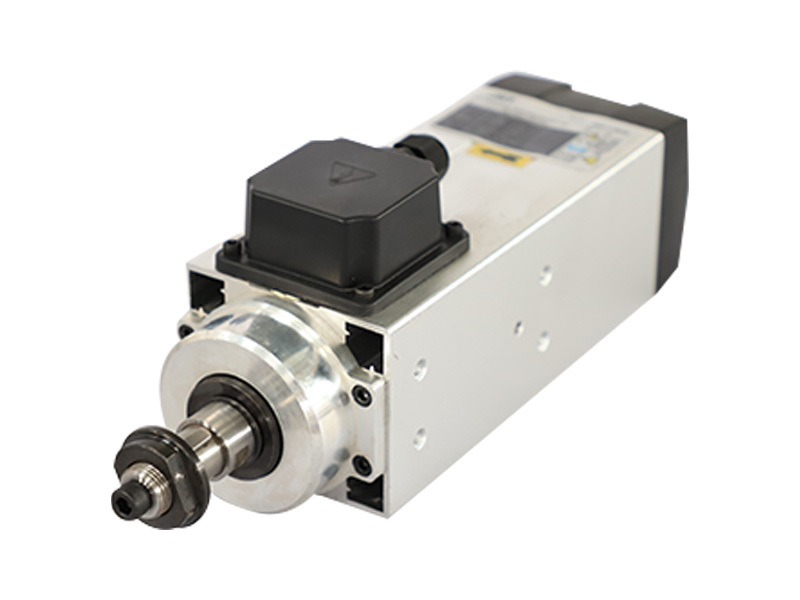

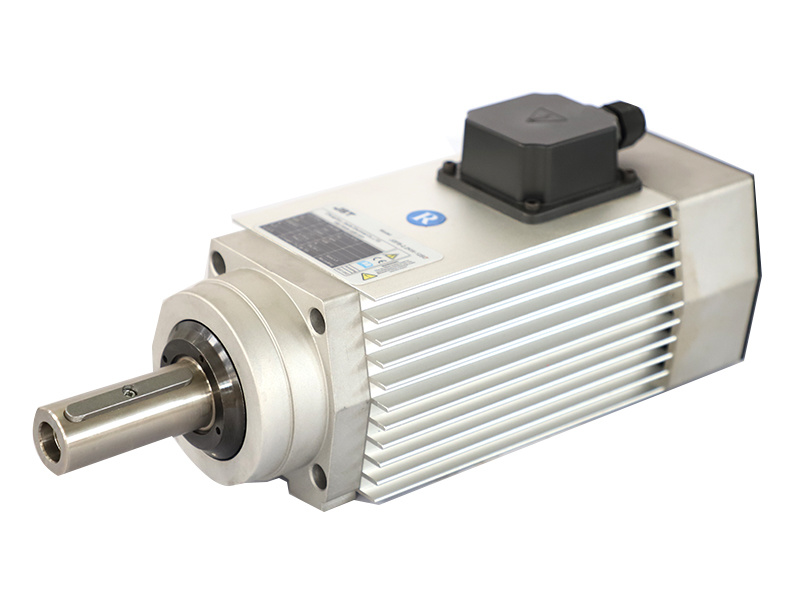

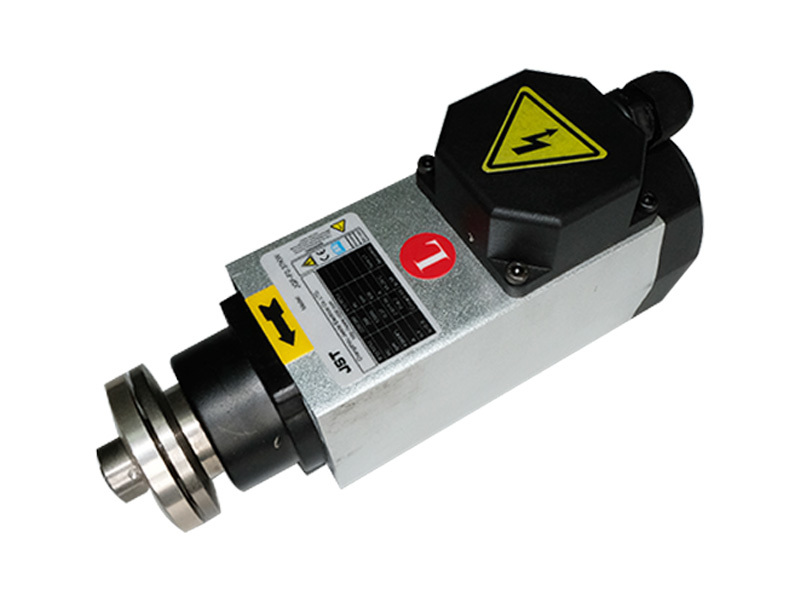

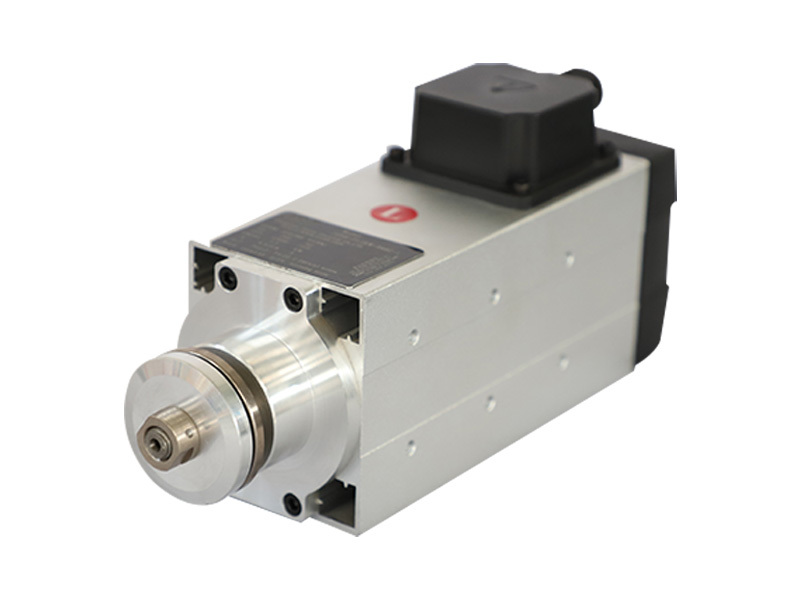

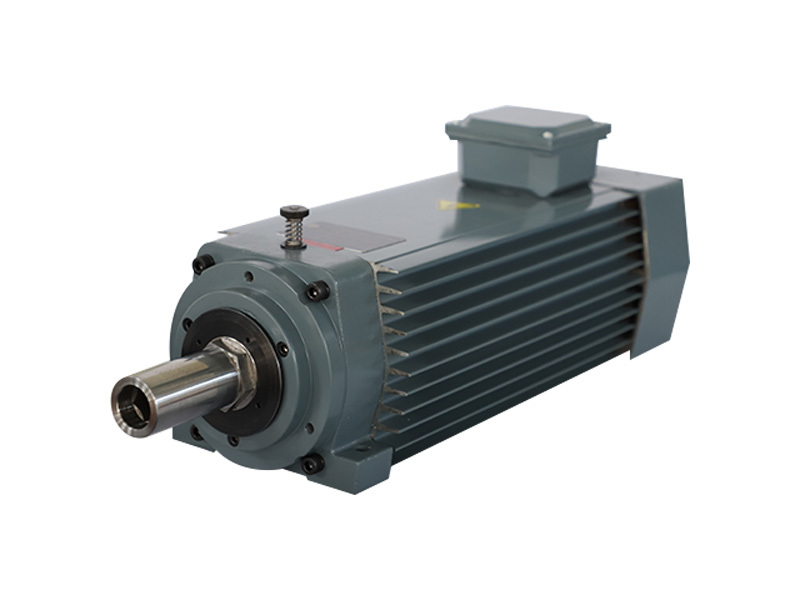

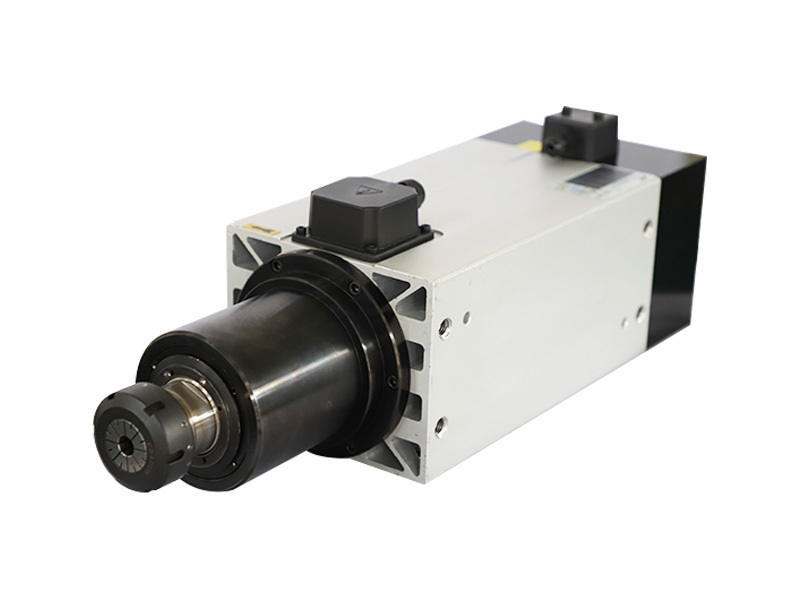

JGFK Woodworking Slotted Saw Motorized Spindle Series
JGFK60-12Z/3.7,ATC spindle
| Rated power (KW) | 3.7 |
| Voltage | 380 |
| Current | 7.5 |
| Frequency (Hz) | 200 |
| Speed (r/min) | 12000 |
| Torque (NM) | 2.97 |
JGFK75-6Z/6.6
| Rated power (KW) | 6.6 |
| Voltage | 380V/220V |
| Current | 14.7/25.4 |
| Frequency (Hz) | 50-100 |
| Speed (r/min) | 3000-6000 |
| Torque (NM) | 10.5 |
JGFK75-6Z/8
| Rated power (KW) | 8 |
| Voltage | 380/220V |
| Current | 18.7/32.3 |
| Frequency (Hz) | 50-100 |
| Speed (r/min) | 3000-6000 |
| Torque (NM) | 12.7 |
JGFK75-6Z/10
| Rated power (KW) | 10 |
| Voltage | 380/220V |
| Current | 22/38 |
| Frequency (Hz) | 50-100 |
| Speed (r/min) | 3000-6000 |
| Torque (NM) | 15.9 |
JGFK47-12Z/2.2
| Rated power (KW) | 2.2 |
| Voltage | 380/220V |
| Current | 4.6/7.9 |
| Frequency (Hz) | 200 |
| Speed (r/min) | 12000 |
| Torque (NM) | 1.75 |
JGFK47-12Z/3.5
| Rated power (KW) | 3.5 |
| Voltage | 380/220V |
| Current | 7.0/12.1 |
| Frequency (Hz) | 200 |
| Speed (r/min) | 12000 |
| Torque (NM) | 2.78 |
JGFK71-6Z/5.5
| Rated power (KW) | 5.5 |
| Voltage | 380/220V |
| Current | 12.2/21.2 |
| Frequency (Hz) | 100 |
| Speed (r/min) | 6000 |
| Torque (NM) | 8.8 |
JGFK71-6Z/7.5
| Rated power (KW) | 7.5 |
| Voltage | 380/220V |
| Current | 15.7/27.2 |
| Frequency (Hz) | 100 |
| Speed (r/min) | 6000 |
| Torque (NM) | 12 |

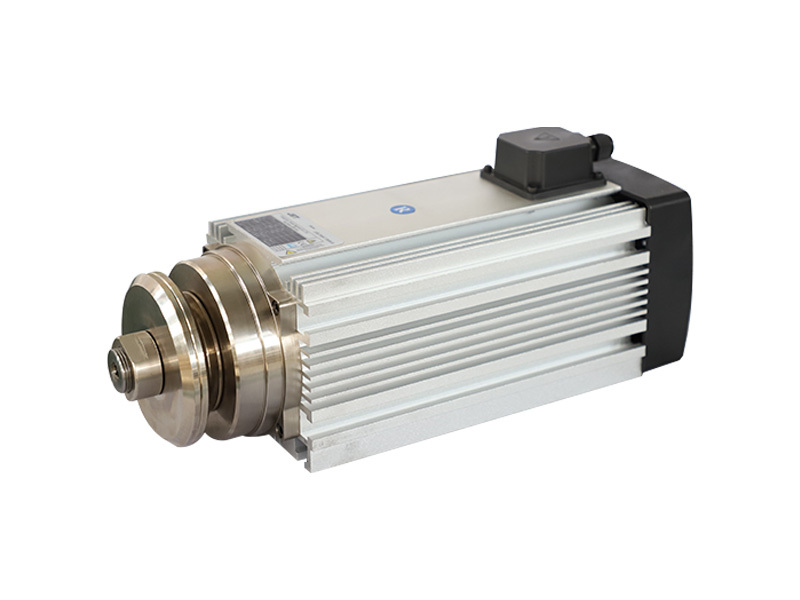

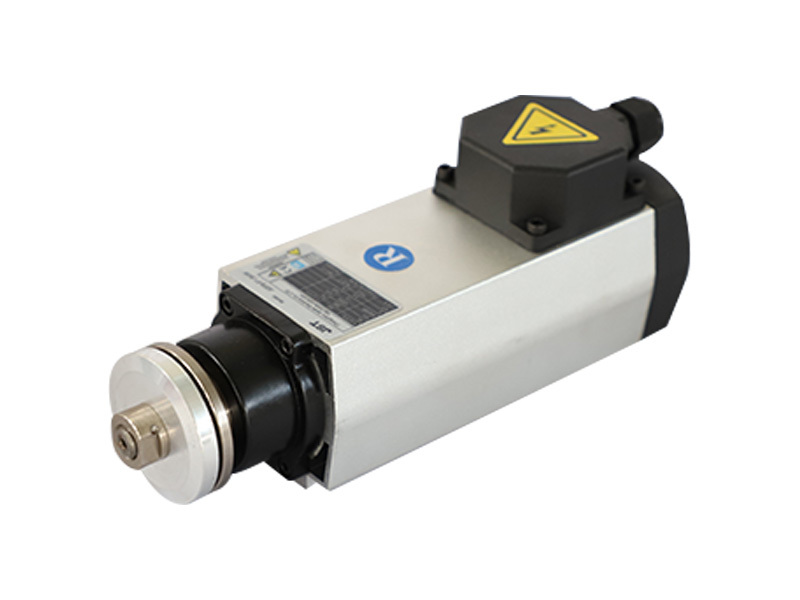

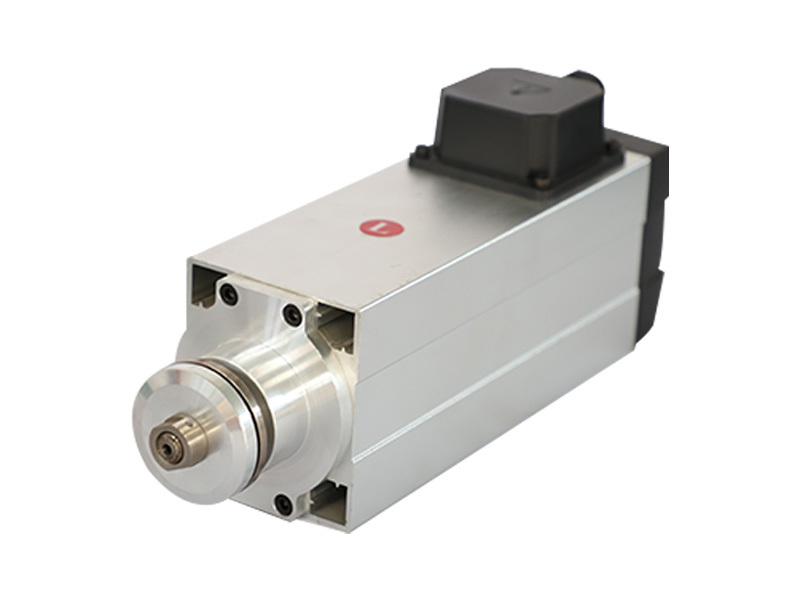

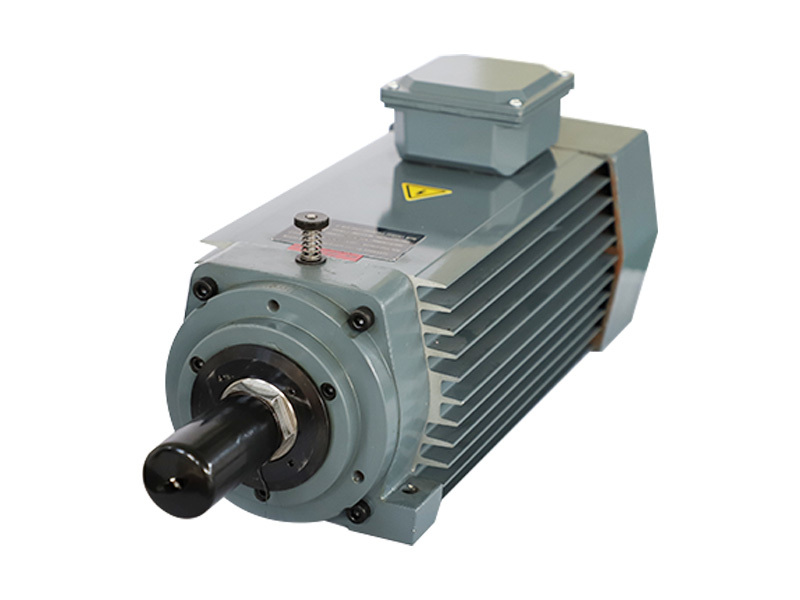

JFB High Speed Motor Series of Edge Bander
JFB35-12Z/0.37
| Rated power (KW) | 0.37 |
| Voltage | 220-380 |
| Current | 2.1-1.1 |
| Frequency (Hz) | 200 |
| Speed (r/min) | 12000 |
JFB35-12Z/0.37/A
| Rated power (KW) | 0.37 |
| Voltage | 220-380 |
| Current | 2.1-1.1 |
| Frequency (Hz) | 200 |
| Speed (r/min) | 12000 |
JFB35-12Z/0.55
| Rated power (KW) | 0.55 |
| Voltage | 220-380 |
| Current | 2.5-1.5 |
| Frequency (Hz) | 200 |
| Speed (r/min) | 12000 |
JFB35-12Z/0.75/A
| Rated power (KW) | 0.75 |
| Voltage | 220-380 |
| Current | 3.4-2.0 |
| Frequency (Hz) | 200 |
| Speed (r/min) | 12000 |
JFB35-12Z/1.1
| Rated power (KW) | 1.1 |
| Voltage | 220-380 |
| Current | 5.2-3.0 |
| Frequency (Hz) | 200 |
| Speed (r/min) | 12000 |
JFB35-12Z/1.1/A
| Rated power (KW) | 1.1 |
| Voltage | 220-380 |
| Current | 5.2-3.0 |
| Frequency (Hz) | 200 |
| Speed (r/min) | 12000 |
JFB41-12Z/1.5/A
| Rated power (KW) | 1.5 |
| Voltage | 220-380 |
| Current | 5.8-3.4 |
| Frequency (Hz) | 200 |
| Speed (r/min) | 12000 |
JFB41-12Z/1.8
| Rated power (KW) | 1.8 |
| Voltage | 220-380 |
| Current | 8.0-4.6 |
| Frequency (Hz) | 200 |
| Speed (r/min) | 12000 |
JFB55-12Z/2.2
| Rated power (KW) | 2.2 |
| Voltage | 220-380 |
| Current | 9.7-5.6 |
| Frequency (Hz) | 200 |
| Speed (r/min) | 12000 |
